Service Scheduling Integration¶
Service scheduling integration is based on the Scheduling optimization configuration, read more about Scheduling Optimization Configuration. When the necessary IFS components and Planning and Scheduling Optimization (PSO) components are installed, this guide describes how to configure the two system to work together.
Contents¶
- Step 1: Configure default parameters
- Step 2: Define the configuration in scheduling optimization configuration page using Add New Configuration Assistant
- Step 3: Go to scheduling dataset page and create your dataset with the configuration id you create in Scheduling Optimization Configuration page
- Step 4: Activate the dataset and send full load
- Step 5: Deactivate the dataset
Step 1: Configure default parameters
Configure Default Parameters for the PSO Integration
Please refer to the section BDR for PSO in IFS Cloud Online Documentation. The activity to be used is Define Scheduling Configuration.
Note: Please note that you have to set up the basic data requirements for this activity.
Configure Parameters for Scheduling Workbench(Embedded) page
In the Scheduling Configuration page, you have to setup correct values for the DATASET_CONFIG_ID and URL. To view the Map tab in the Scheduling Workbench(Embedded) page you have to choose which map type you wish to use. To view the Scheduling Assistant tab in the Scheduling Workbench(Embedded) page you have to setup the correct permission in the PSO workbench. In the PSO Workbench, to maintain content security policy you need to explicitly whitelist allowed host domains with space separated in WorkbenchHostUrl parameter (PSO Workbench>administration>organization>parameters).

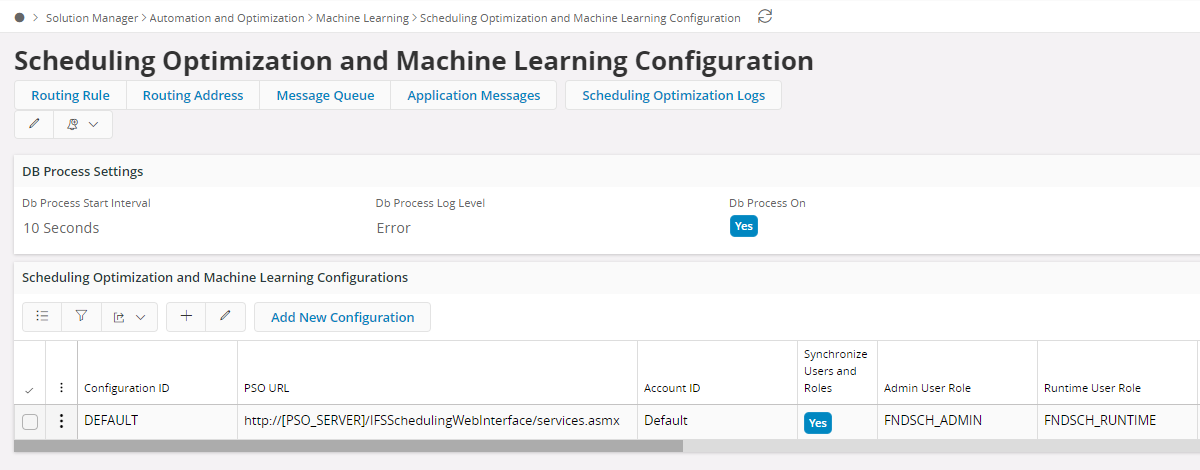

Step 2: Define the configuration in scheduling optimization configuration page using Add New Configuration Assistant. Please follow the guideline IFS Optimization Framework Configuration Assistant.
Please follow this guideline Scheduling Optimization Configuration.

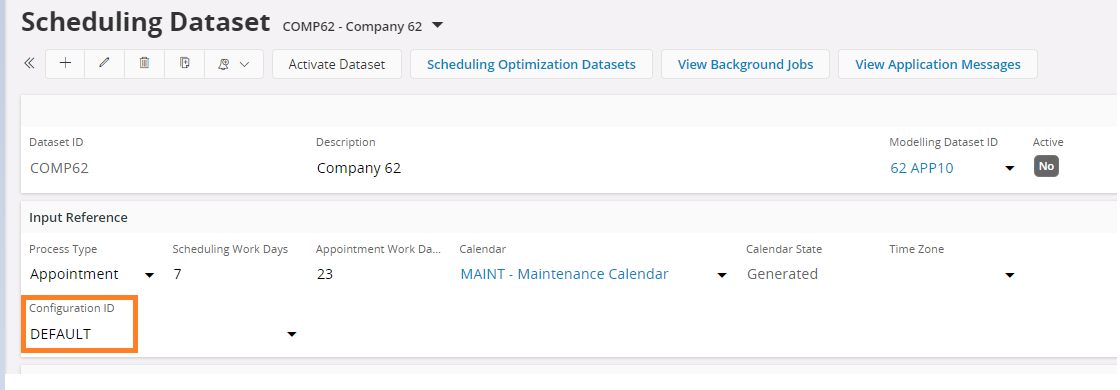

Step 3: Go to scheduling dataset page and create your dataset with the configuration id you create in Scheduling Optimization Configuration page.
Please refer to the section BDR for PSO in IFS Cloud Online Documentation. The activity to be used is Define Dataset.
Note: Please note that you have to set up the basic data requirements for this activity.
Step 4: Activate the dataset and send full load.
Step 5: Deactivate the dataset.

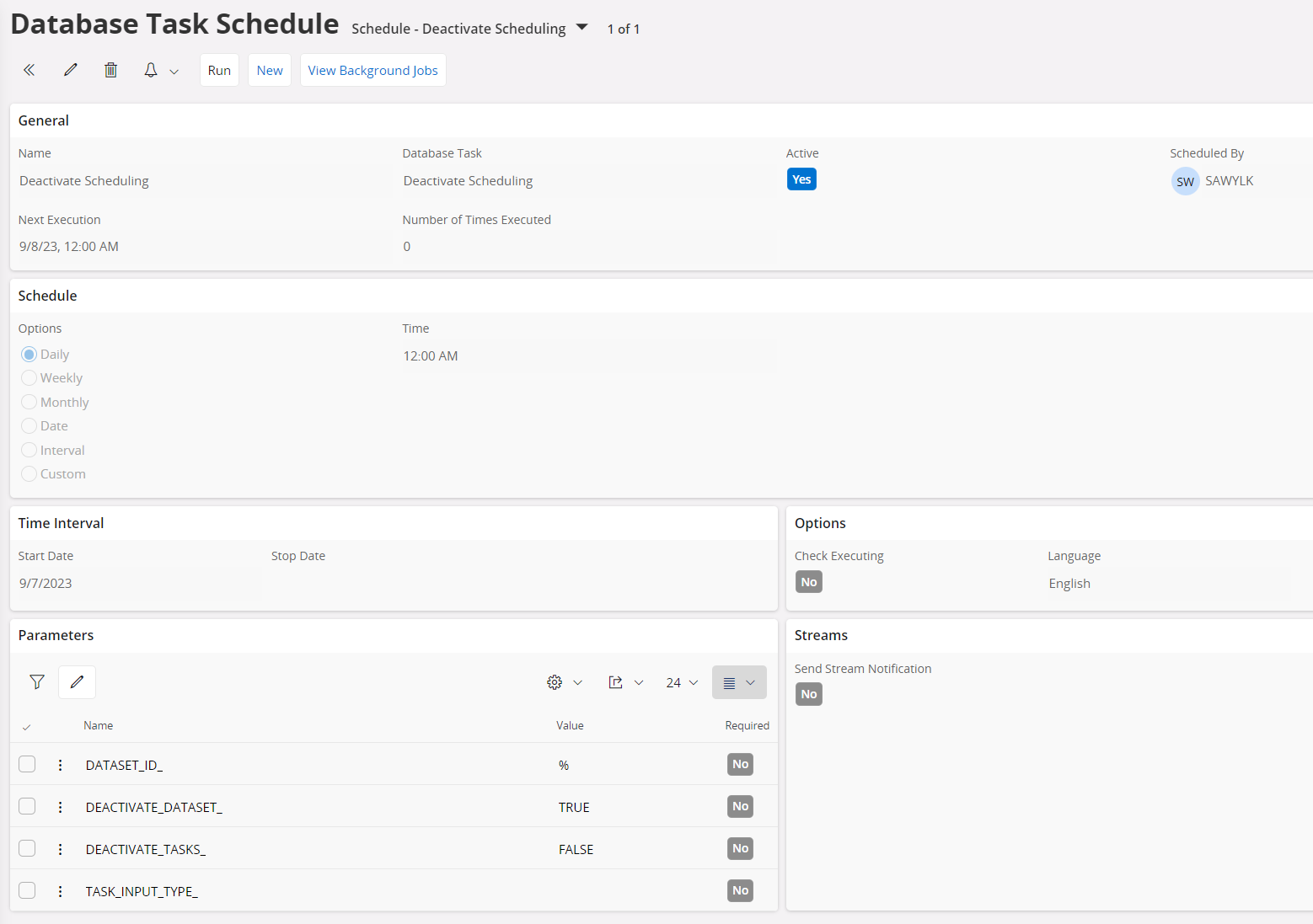

It is possible to deactivate the datasets using the scheduled task "Deactivate Scheduling". This needs to be set up and enabled manually. This task would be responsible for deactivating datasets that are no longer in use, helping to prevent unnecessary buildup. Please ensure that execution frequency aligns with the scheduled task "Disable Active Datasets" if they exist.
Parameters:
-
Dataset ID - The Dataset ID's to disable. Accepts wildcards. The default value is '%' (all datasets).
-
Deactivate Dataset - Enter 'TRUE' to deactivate the datasets. The default value is 'TRUE'.
