Configuring Image/Text Elements¶
"Image/Text Elements" can be used to display important messages and crucial updates within the organisation. Following configuration sections are specific for "Image/Text Elements".

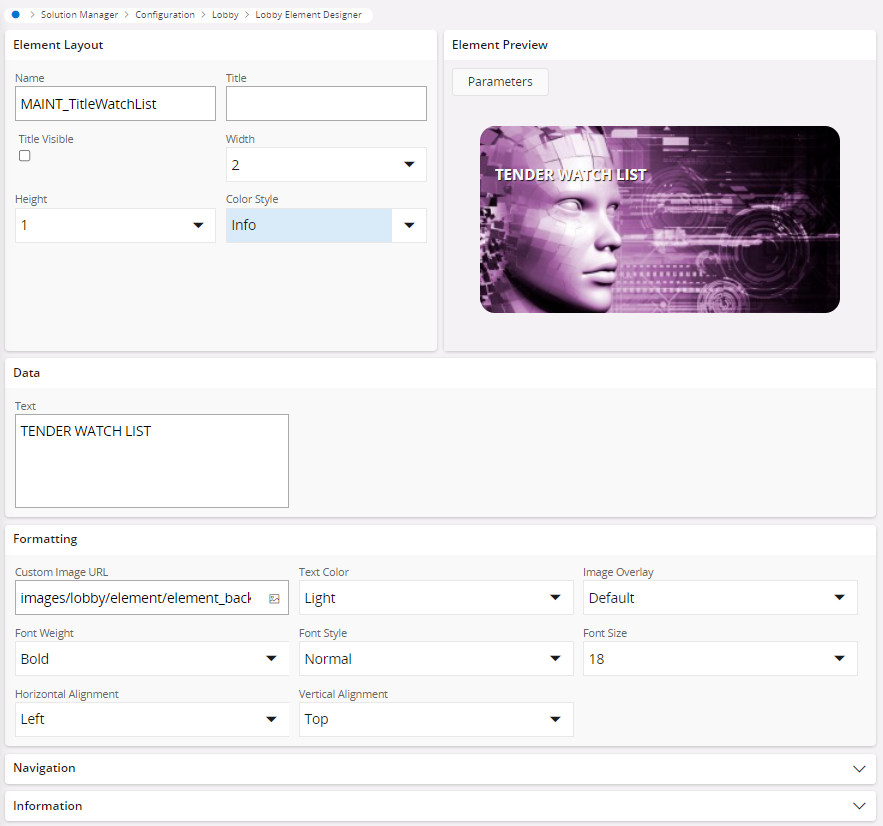

Image/Text Element Configuration Dashboard Preview¶

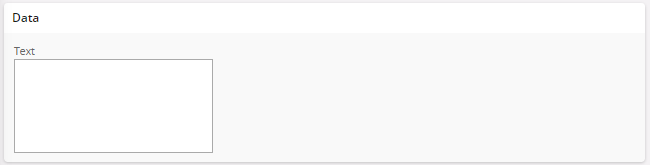

Data¶
Data to be displayed inside the element
Configuration Properties¶
| Property | Description |
|---|---|
| Text | Add a text in this filed to display in the element |
Formatting¶
Add additional formatting to the element image & text from the "Formatting" section.
Configuration Properties¶
| Property | Description |
|---|---|
| Custom Image URL | The image URL which need to show as background image. Note: You can use Either a custom image URL which is publicly accessible or an Appearance Resource. |
| Text Color | Select a text color from the drop-down menu. Note: Only available after selecting an image |
| Image Overlay | Add an overlay to the image by selecting one of the options from the drop-down menu |
| Font Weight | Select the font weight (Normal , Bold) |
| Font Style | Select a font style (Normal, Italic) |
| Font Size | Select a font size from the dropdown menu |
| Horizontal Alignment | Adjust the horizontal alignment of the text (Left, Center, Right) |
| Vertical Alignment | Adjust the vertical alignment of the text (Top, Center, Bottom) |
| Formatting | Possible to format the text (weight, style, size, alignment) and if there is a custom image URL, possible to change the text color and image overlay to improve readability. |
