Digital Signature Code Generation Support¶
The IFS Signature Service allows a technician to sign a document after the work is complete. The signature is stored and associated with the document. In order to enable digital signatures, relevant properties are added to the respective models.
Entity Models¶
Digital Signature support for entity models is handled through the following properties:
Property Name | Level | Description |
---|---|---|
DigitalSignatureColumn | Entity | Enables the use of digital signatures by an entity |
DigitalSignatureEnforced | Attribute | Enables an attribute to have a digital signature |
DigitalSignatureKeyReference | Association | Enables one-to-many digital signature mapping from the main LU to child LUs |
According to the property settings, the code generator will add additional code to the Check_Common___ method of the apy file.
DigitalSignatureColumn¶
This property enables an entity to bind with a Digital Signature using the column specified as a reference to DssDocument LU.
Syntax¶
Parameter | Description |
---|---|
Column Name | Table column name of the attribute reference to DssDocument LU |
Considerations | |
---|---|
1 | Entity should have reference to DssDocument LU binding with attribute specified as "Column Name" parameter |
2 | Persistent or derived attributes can be specified as the digital signature column |
3 | Reference to DssDocument should be specified with necessary additional settings. If the entity component does not have a static dependency on FNDDSS component, it should be specified with DynamicComponentReference property. |
![]() |

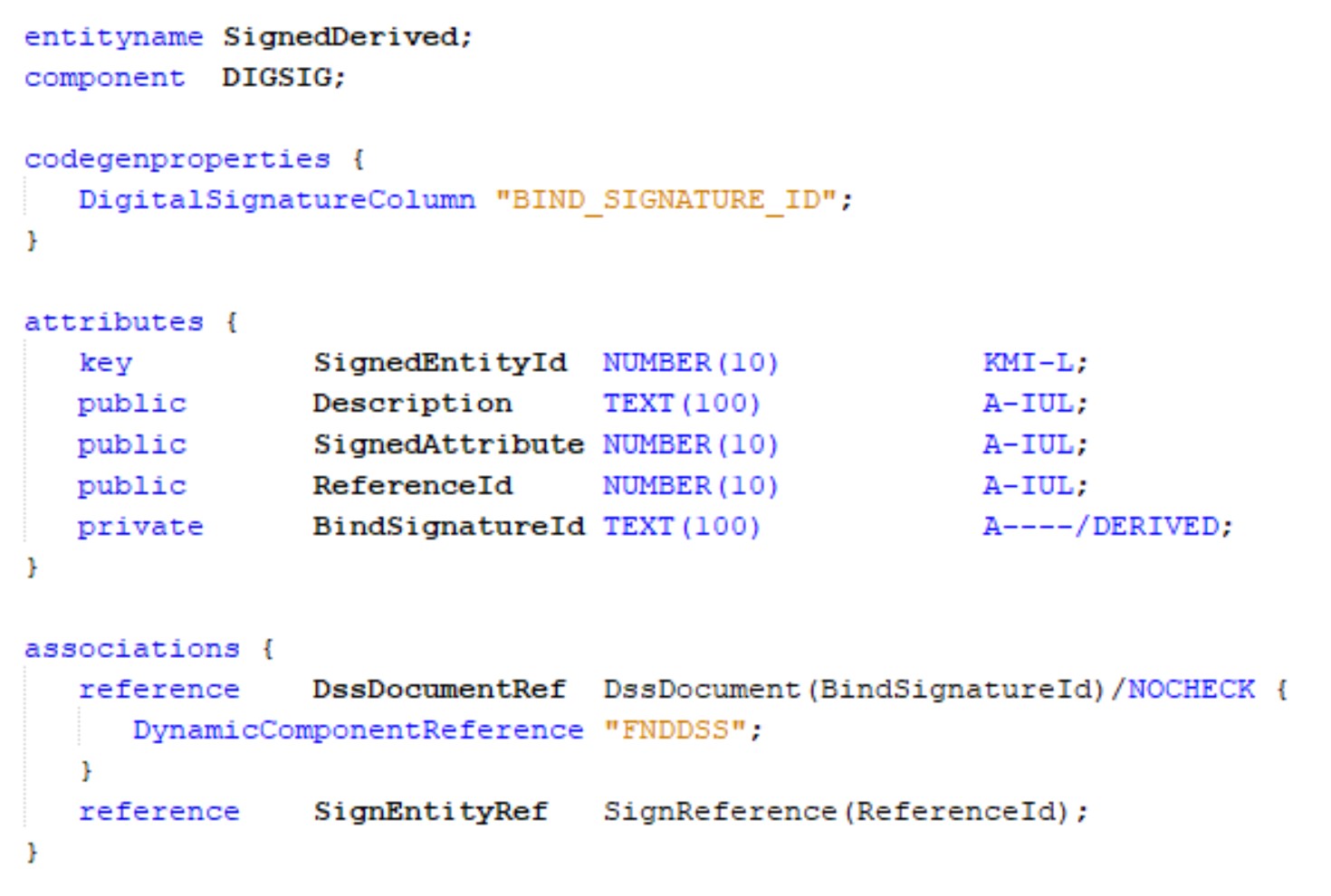

Sample¶

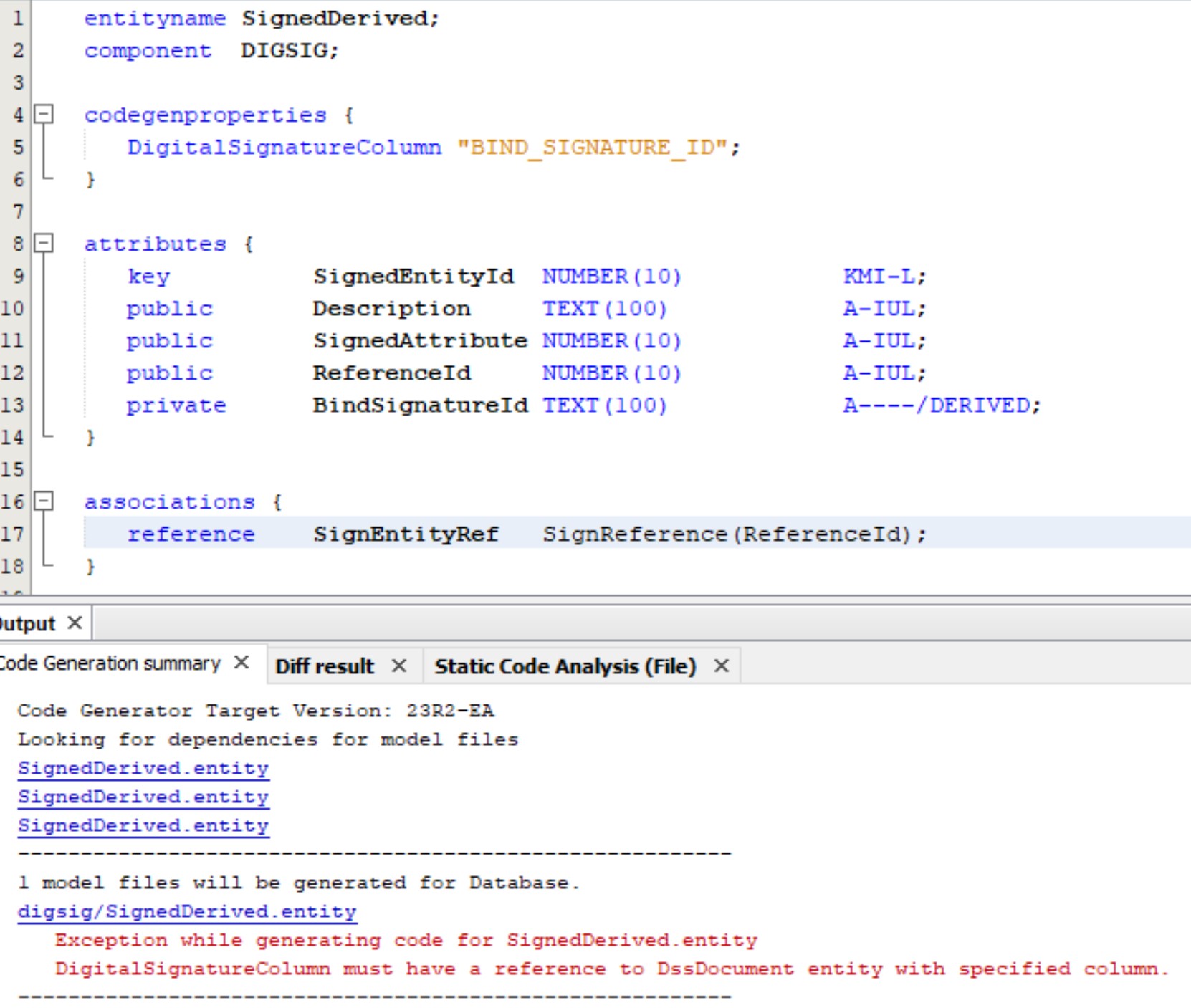

Validations | |
---|---|
1 | Digital signature enabled entity should have reference to DssDcoument LU |
![]() |
|

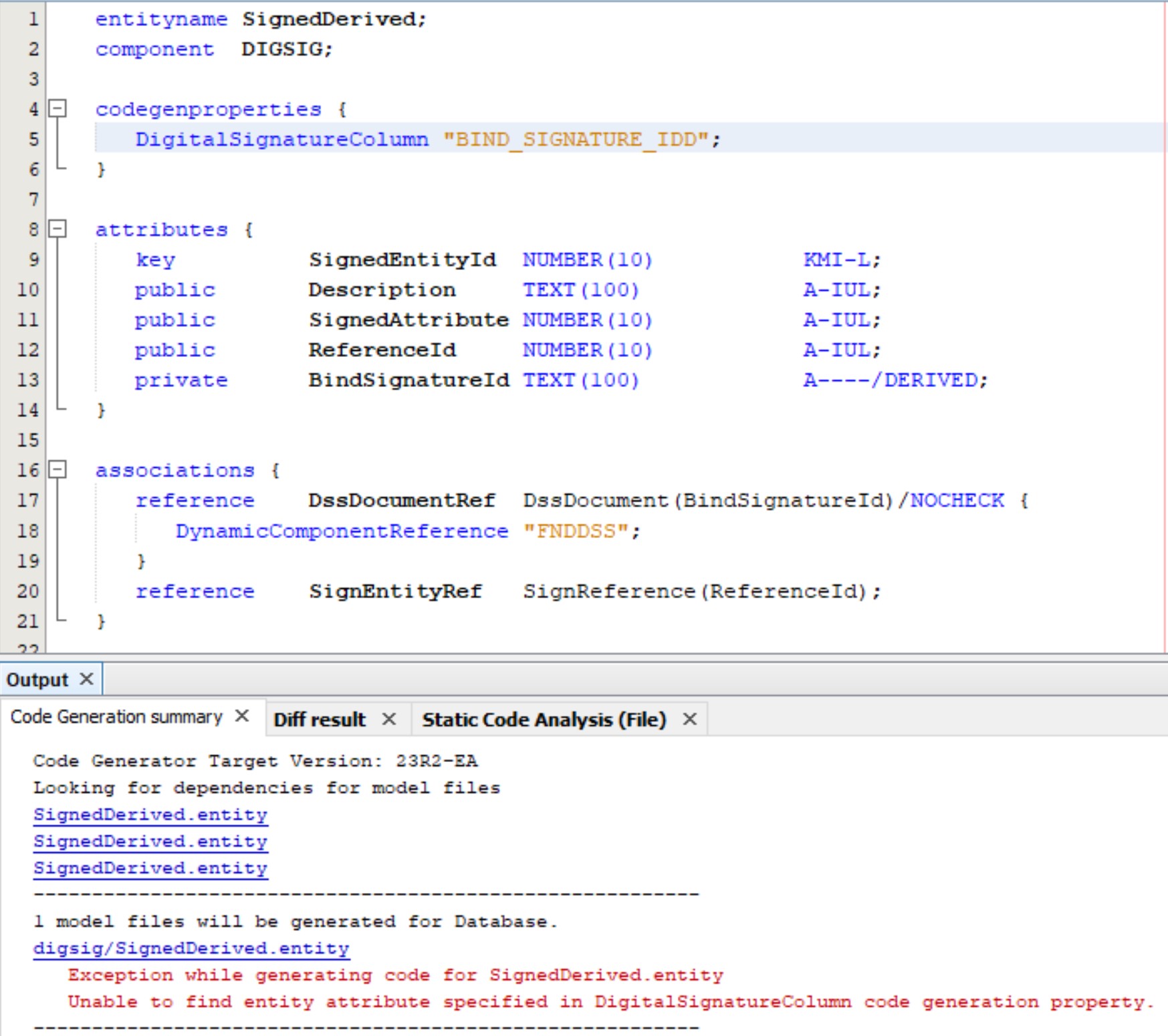

2 | Reference to DssDocument LU should bind with attribute specified in DigitalSignatureColumn property |
![]() |
DigitalSignatureEnforced¶
This is an optional attribute level property making a digital signature mandatory for any updates to the attribute value when digital signatures are enabled for the LU.
Syntax¶
Property Value | Description | Implementation |
---|---|---|
default | Enables standard Digital Signature check implementation | None |

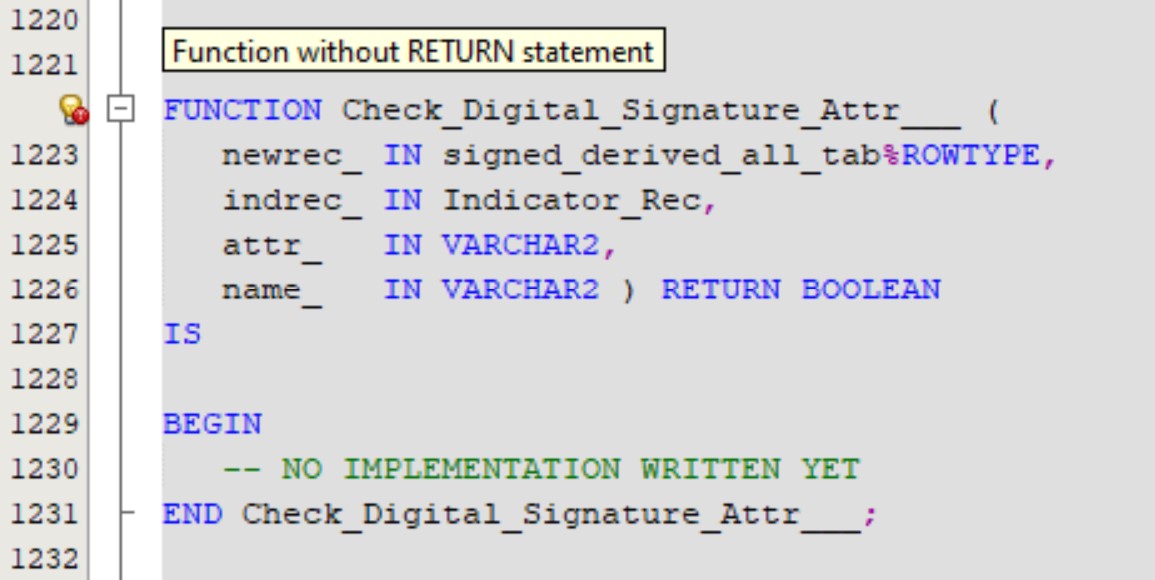

custom | Enables custom Digital Signature check implementation in Check_Digital_Signature_Attr___ method | ![]() |
Considerations | |
---|---|
1 | Entity should be Digital Signature enabled with DigitalSignatureColumn property |
2 | Digital Signature can be enforced on multiple attributes |

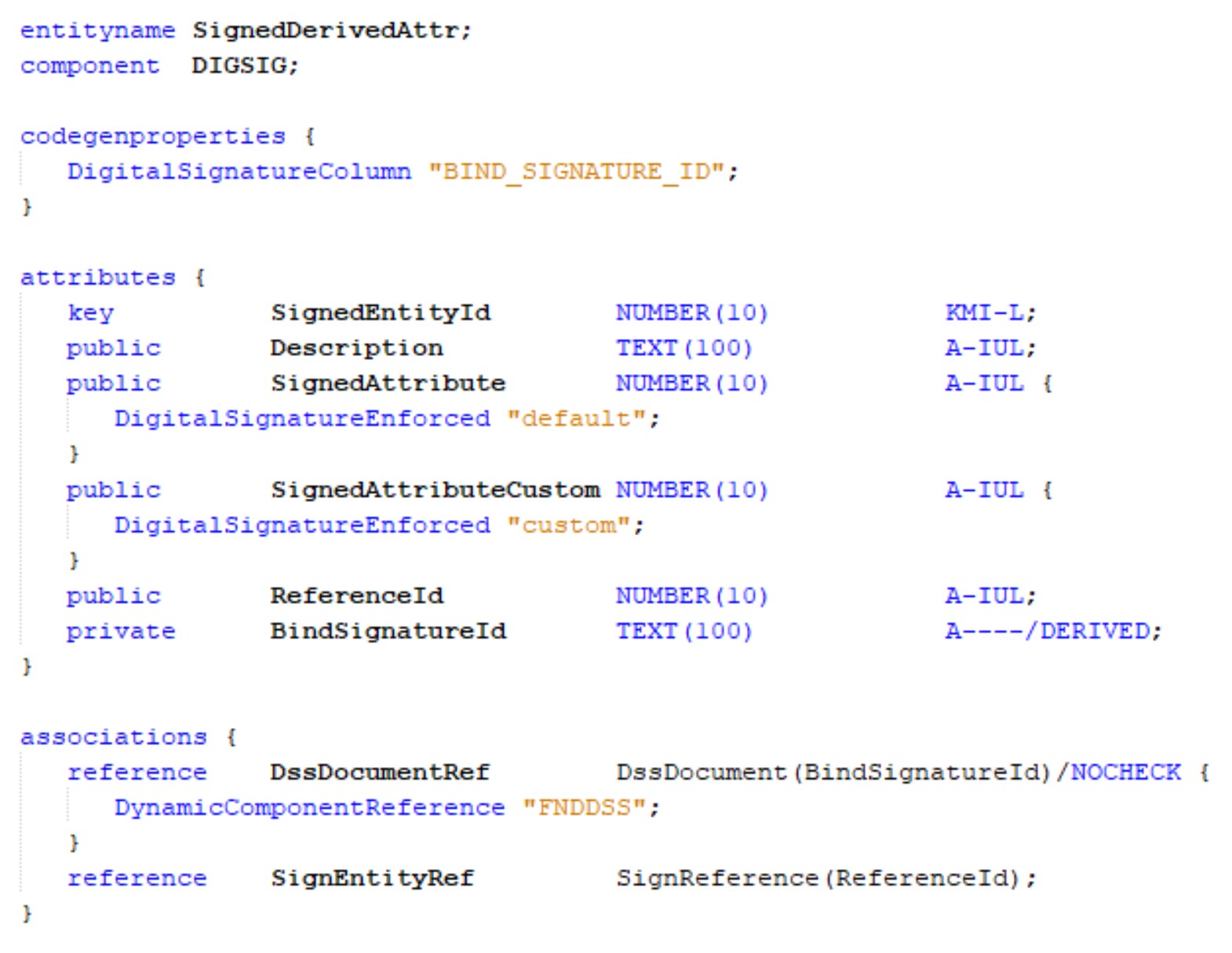

Sample¶

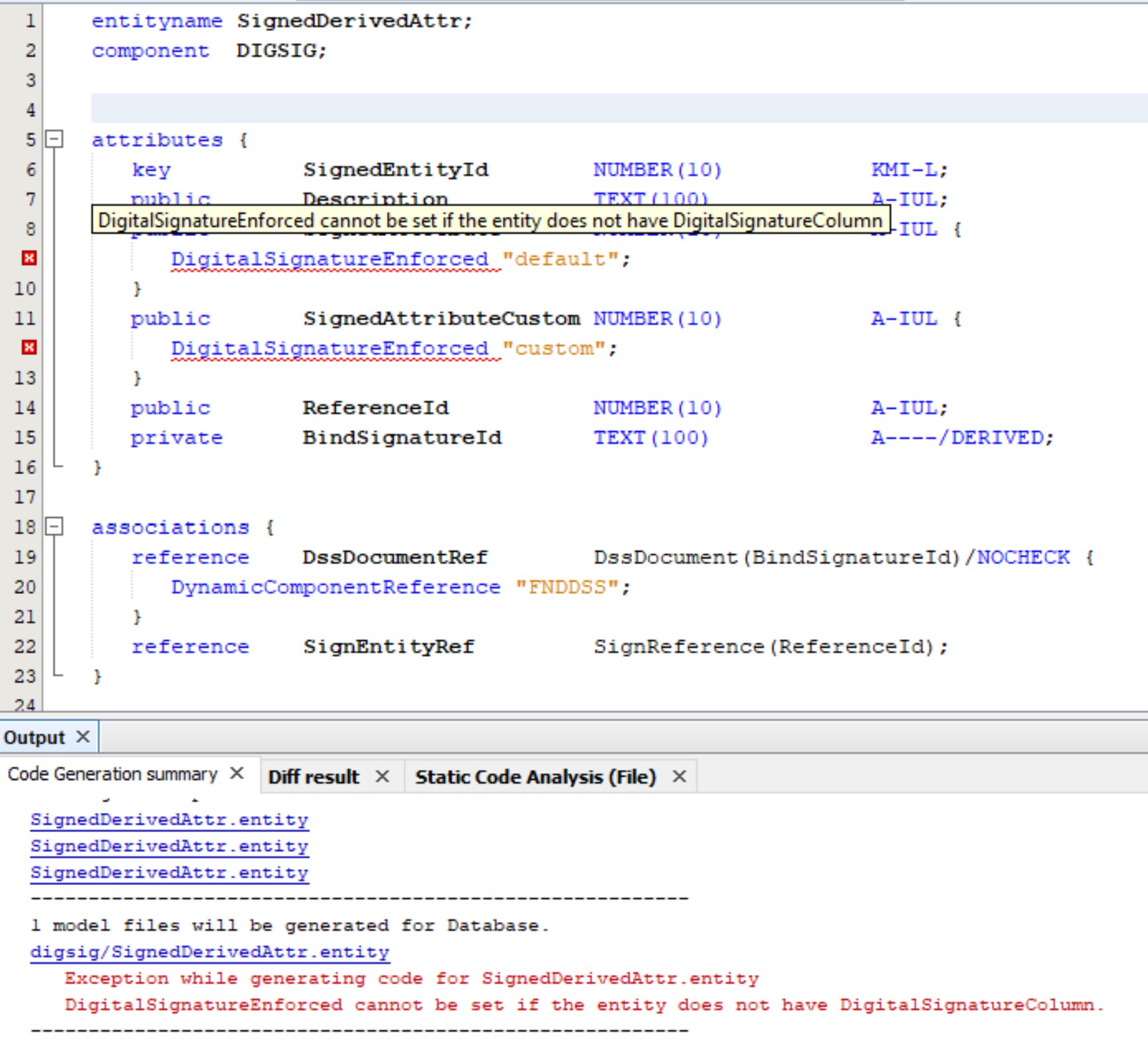

Validations | |
---|---|
1 | Entity should be Digital Signature enabled with DigitalSignatureColumn property |
![]() |
DigitalSignatureKeyReference¶
This property enables one-to-many Digital Signature mapping from the main LU to child LUs where the actual signature is attached to the main LU but validations need to take place at the child level.
Syntax¶
Property Value | Description |
---|---|
true | Enables Digital Signature mapping from main LU to child LU |
Considerations | |
---|---|
1 | Entity should be Digital Signature enabled with DigitalSignatureColumn property |
2 | Only one reference can be a Digital Signature key reference |

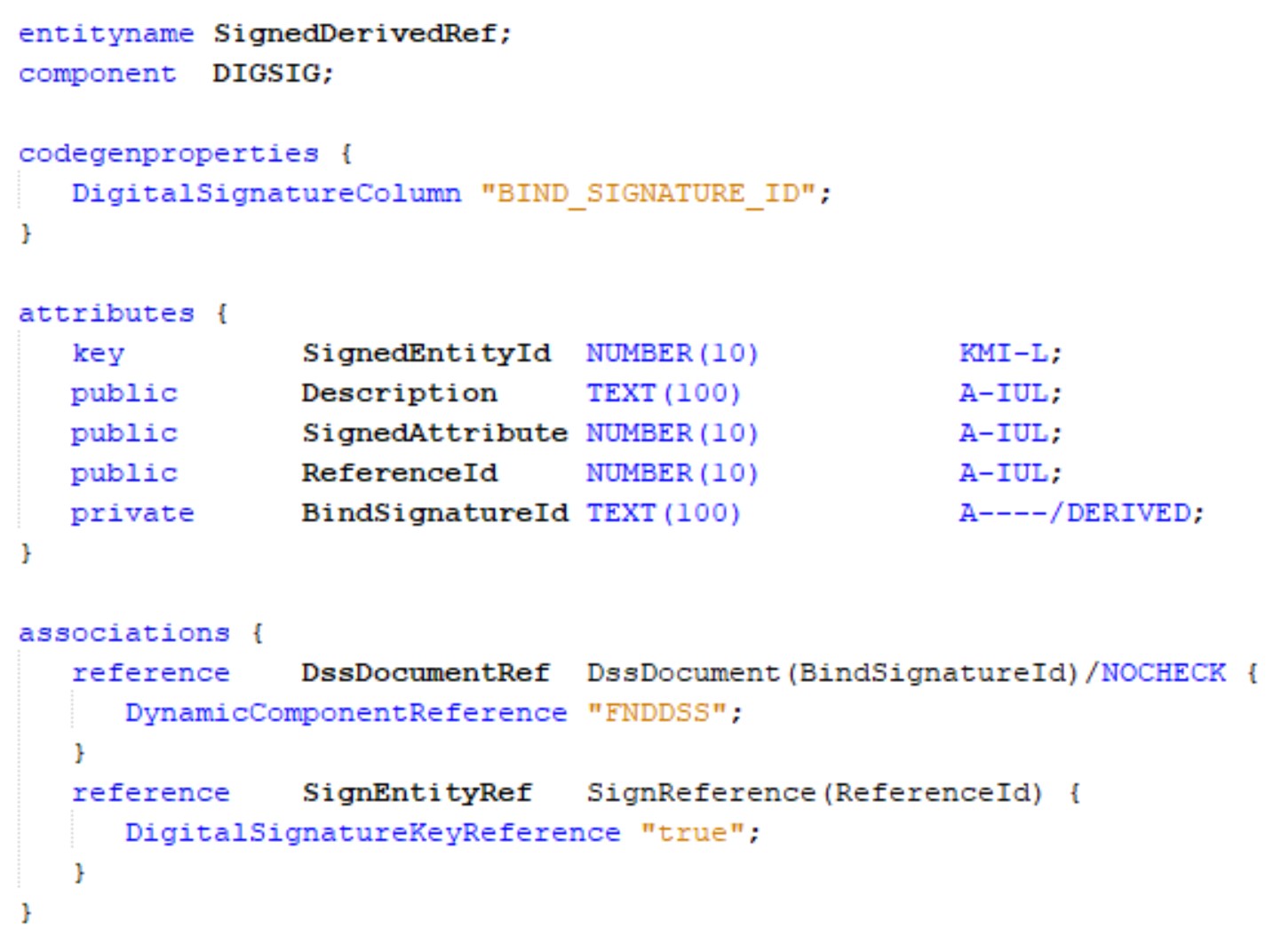

Sample¶
Validations | |
---|---|

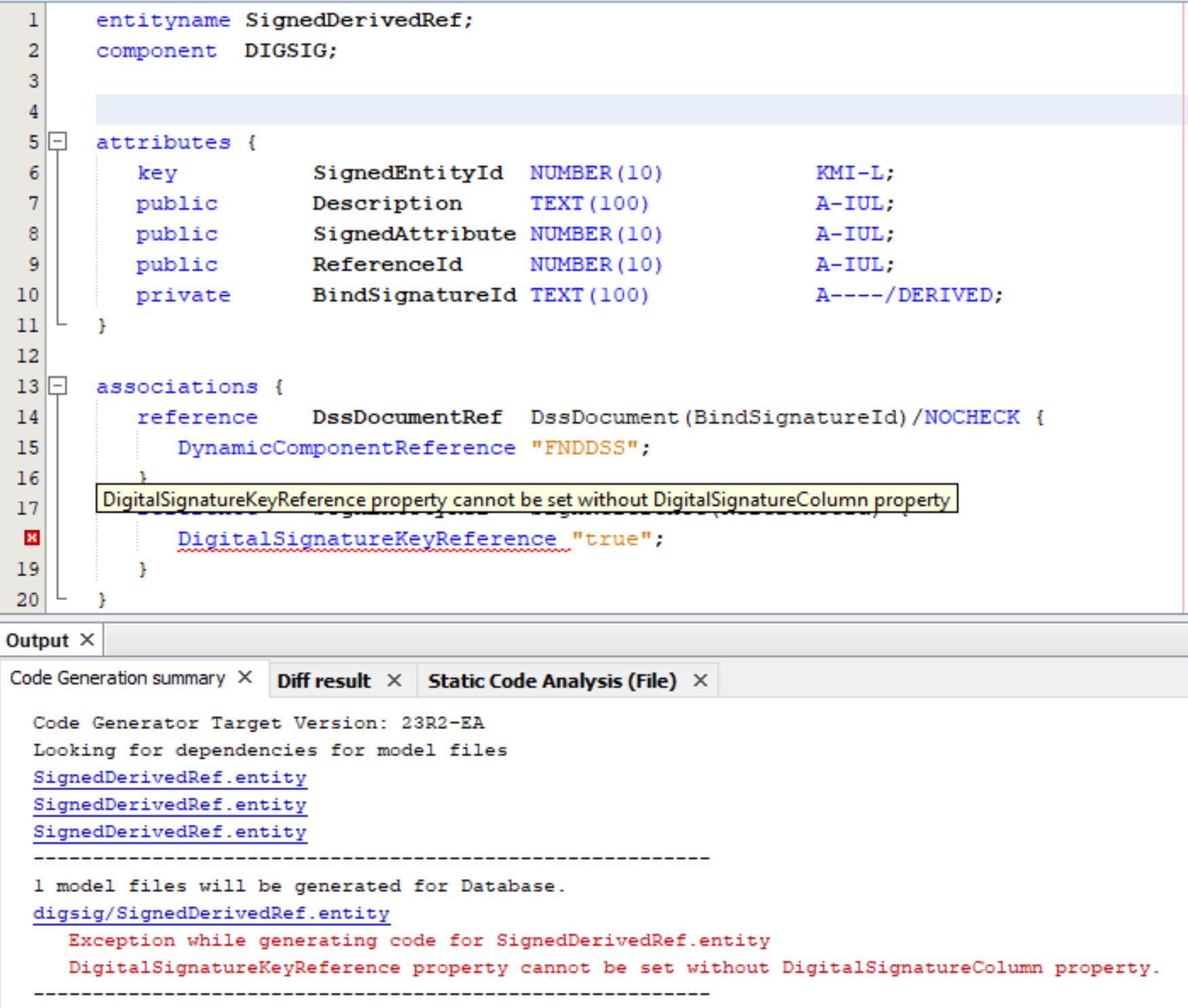

1 | Entity should be Digital Signature enabled with DigitalSignatureColumn property |
![]() |
|

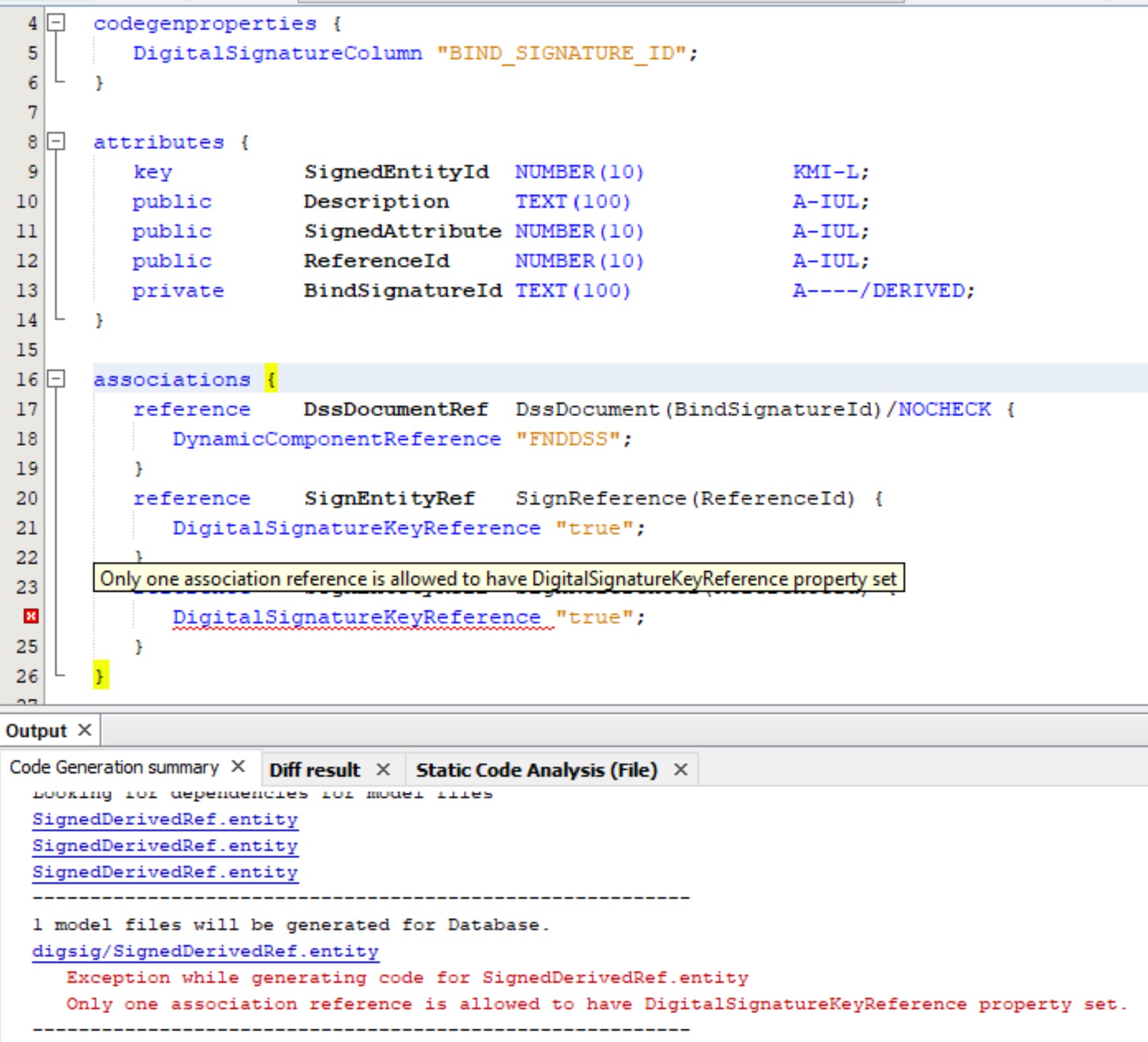

2 | Only one association reference can be a Digital Signature key reference |
![]() |
Client Models¶
Setting up a Digital Signature¶
The following properties can be used to set up a digital signature.
1. digitalsignature
¶
Sets up a digital signature.
Syntax¶
digitalsignature for <Entity_Name> { }
Parameter | Description |
---|---|
<Entity_Name> |
Entity name of the signature entry |
Considerations¶
This syntax can only be used in Lists and Groups. Lists marked with the digitalsignature property will have all rows in the data source appear in the generated PDF irrespective of the defined paging size.
2. hashcontent
¶
Used for hash content generation of Digital Signatures. Informs the server to hash the contents of each row when evaluated to true
.
Syntax¶
hashcontent = [<Condition>];
Parameter | Description |
---|---|
<Condition> |
Condition to evaluate for content hashing |
Sample¶
list RemovePartList for RemovedPartLineVirtual {
label = "Removed Parts";
multiselect = [false];
orderby = TaskPartId desc;
digitalsignature for AvExeTaskPart {
hashcontent = [SignedFlag = true];
}
}
3. signaturemappingattribute
¶
Used to specify the DB column name when it cannot be derived from the field or badge name. This property is optional and must always be in all caps.
Syntax¶
signaturemappingattribute = <Column_Name>;
Parameter | Description |
---|---|
<Column_Name> |
Column name of the DB entity |
Considerations¶
This syntax can only be used in Fields and Badges.

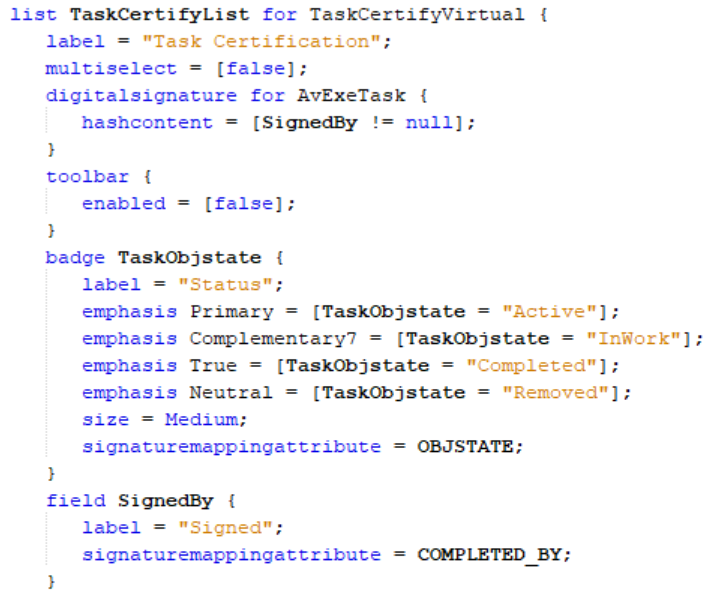

Sample¶
4. excludefromsignaturemapping
¶
When true
, the field will be excluded from hash calculations used in Digital Signatures. The default value is false
.
Syntax¶
excludefromsignaturemapping = true;
Considerations¶
This syntax can only be used in Fields and Badges.
Sample¶
Signing a Document¶
1. signdocument
¶
Instruction to trigger the signing process. This syntax can be used in a command's execute
block.
Syntax¶
variable <Variable_Name> Structure(EsigResponseStructure);
signdocument into <Variable_Name> { }
Or
variable <Variable_Name> {
type = Structure(EsigResponseStructure);
}
signdocument into <Variable_Name> { }
Parameter | Description |
---|---|
EsigResponseStructure |
An implicit structure defined by the framework |
Considerations¶
It is mandatory to use EsigResponseStructure
as the structure type when used with signdocument
.
Include FndEsignature.fragment
in the projection when EsigResponseStructure
is used with signdocument
.
FndEsignature.fragment
structure EsigResponseStructure { attribute Guid Text; attribute State Text; }
Sample¶
command SignCommand for EsigRecordWorkVirtual {
label = "Sign";
enabled = [SignEnable and(ESigPermission = "Yes" or ESigPermission = null)];
variable SignResponse {
type = Structure(EsigResponseStructure);
}
execute {
signdocument into SignResponse {
keyref = ParentKeyRef;
luname = ParentLuName;
filenameprefix = "Record-work";
documenttype = pdf;
}
alert("Signing outcome: ${SignResponse.Guid} - ${SignResponse.State}");
if [SignResponse.State = "SUCCESS"] {
call SignRecordWork(TaskId, SignResponse.Guid);
set SignEnable = false;
if[Source = "TASK_DETAIL"] {
navigate back;
}
else {
navigate back;
navigate {
page MyWorkPage {
filter(TaskId, TaskId);
}
}
}
alert("***** ${SignResponse.Guid}");
}
if [SignResponse.State = "FAIL"] {
error("Failed to record electronic signature. Review changes and try again.");
}
exit;
}
}
2. filenameprefix
¶
Specifies the prefix used for formatting the file name, always being suffixed with a GUID. The maximum length of the filename consisting of the prefix, suffix and file extension is 100 chars due to a limitation in the File Storage Service.
Syntax¶
filenameprefix = "<Prefix>";
Considerations¶
If excluded, the file name will be formatted only using a GUID.
Sample¶
command Sign for EsigReleaseAircraftVirtual {
label = "Sign";
visible = [IsWpComplete = false and Status = "Completed" and(ESigPermission = "Yes" or ESigPermission = null)];
variable SignResponse {
type = Structure(EsigResponseStructure);
}
execute {
signdocument into SignResponse {
keyref = ParentKeyRef;
luname = ParentLuName;
filenameprefix = "Release Aircraft";
documenttype = pdf;
}
}
}
Mobile App models¶
The documentation for Mobile apps resides under the following two pages:
