Mobile Synchronization Times and Data Volume¶

The lobby Mobile Synchronization Times and Data Volume shows metrics around the mobile synchronization time and data volume per entity for a certain mobile app. It is available from lobbies Mobile App Status Generic and Mobile App Status with Failed Transaction and Grouped Push or directly from Solution Manager / Configuration / Lobbies.

Synchronization Times¶

For synchronization time the following metrics exist:

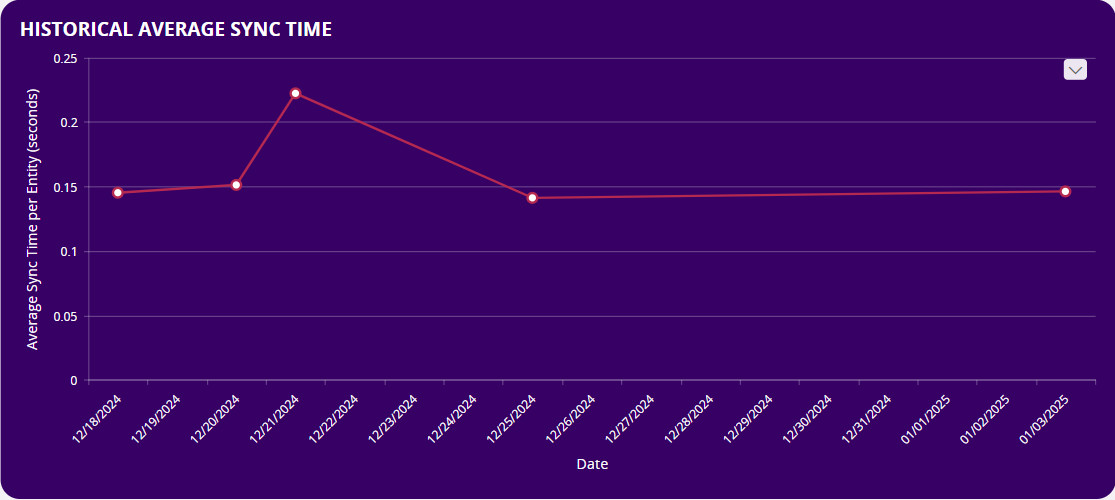

Historical Average Entity Sync Time¶

Shows the average entity synchronization time, in seconds. Very high values in this graph might indicate performance problems for certain entities and needs to be investigated to see whether it is normal or not. The data for this graph is collected each night.

average_entity_sync_time

Minimum Entity Sync Time Today¶

Shows the lowest synchronization time in seconds today.

minimum_entity_sync_time_today

Average Entity Sync Time Today¶

Shows the average synchronization time in seconds today.

average_entity_sync_time_today

Maximum Entity Sync Time Today¶

Shows the highest synchronization time today.

maximum_entity_sync_time_today

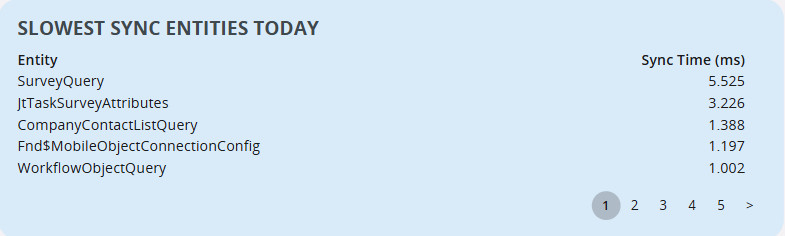

Slowest Sync Entities Today¶

Shows a list of all synchronized entities in milliseconds today, with the entities that takes the longest time first. Each entity that has a high value might need to be reviewed as it decreases the performance in the synchronization. It might not be anything wrong, it could be dependent on the data volume for the entity, but good to review and see if any additional filter can be added to reduce the time.

slowest_synced_entities_today

Synchronization Data Volumes¶

For synchronization data volumes, the following metrics exist:

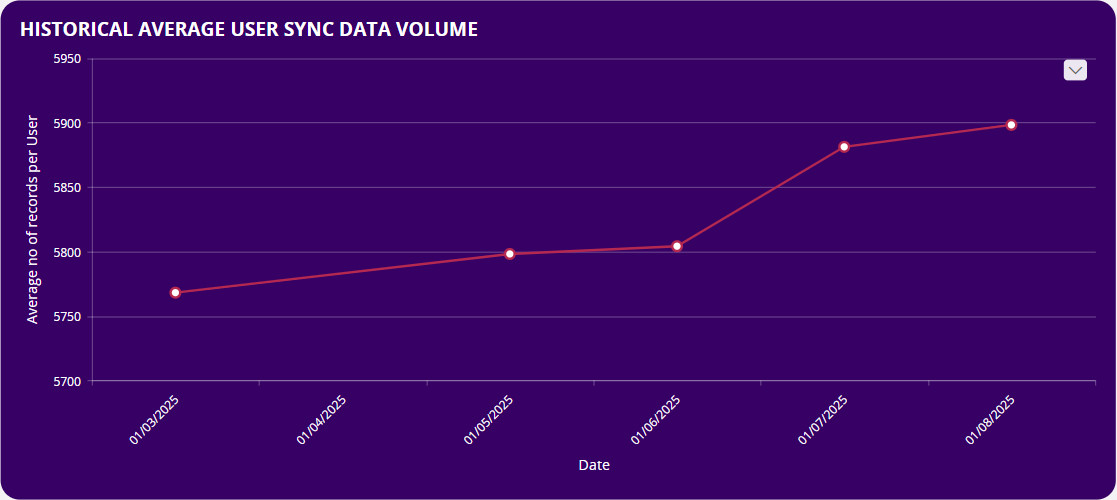

Historical Average User Sync Data Volume¶

Shows the average synchronization data volume for users. Very high values in this graph might indicate performance problems for certain entities and needs to be investigated to see whether it is possible to decrease the data volume by using Entity Filters. The data for this graph is collected each night.

average_entity_data_volume

Minimum Sync Records Today¶

Shows the lowest amount of records during a synchronization today.

minimum_sync_records_today

Average Sync Records Today¶

Shows the average number of synchronized records today.

average_sync_records_today

Maximum Sync Records Today¶

Shows the highest amount of records during a synchronization today.

maximum_sync_records_today

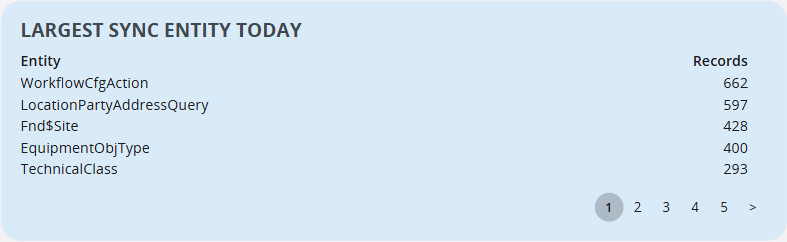

Largest Sync Entity Today¶

Shows a list of all synchronized entities today, with the entities that are largest first. Each entity that has a high value might need to be reviewed as it decreases the performance in the synchronization. It might not be anything wrong, but good to review and see if any additional filter can be added to reduce the records of data that is synchronized.

largest_synced_entities_today
