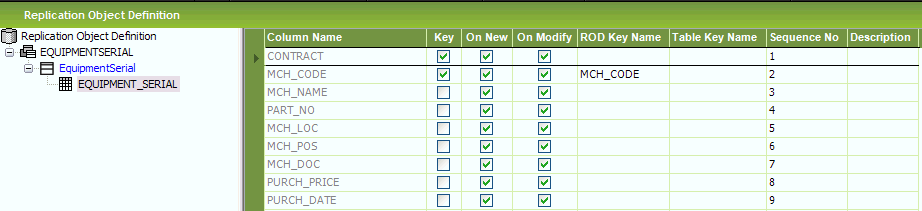

When a View is selected in the navigator, the right window includes the column information for the view.
When a logical unit is entered into a Replication Object Definition this
window is populated from the data dictionary. If a column has the same name as
another column with the suffix _DB
added the column would be
unmarked for replication and the DB
column is marked instead.
N/A
This window contains:
Column Name: is the view column name.
Key: is marked when the column is part of the primary key.
On New: If checked the data in the column is replicated when an object is created.
On Modify: If checked the data in the column is replicated when an object is modified.
ROD Key Name: is the name of the column in the Master LU. At least one view column must have a value in this column.
Table Key Name: is the name of the column in the triggering table if the name is different from the view column name.
Sequence No: is the column sequence in the attribute string when the New/Modify method is called when an object is received.
