MS Word Templates for Organization

The purpose of this page is to supply a guideline how to handle MS Word document templates with respect to the Organization component.

Contents

Description of Functionality

The possibility to create MS Word documents based upon a template and the data from the application gives the user an easy way to define documents to generate.

The available information that may be used in the document consists of a fixed number of fields that can be mixed with the text in the documents.

There are 48 items defined and supplied in the file employeedata.htm. The file currently includes the following supported database items:

Company Information Personal Information Employment Information
Company Name First Name Emp No
Association No Last Name Date Of Employment
Company Address Title Date Of Leaving
Company Address 1 Initials Employment Comments
Company Address 2 External Display Name Work Time
Company Zip Code Address Leaving Cause
Company City Address 1 Date Start Position
Company State Address 2 Date End Position
Company County Zip Code Position Title
Company Country City Job Title
Company Phone State Manager Name
Company Fax County Manager Job Title
Company Email Country Salary Per Year
  Social Security Number (SSN) Salary Per Month
  Gender Salary Per Hour
  Date Of Birth Salary Amount
  Place Of Birth Salary Period
    Salary Pay Frequency
    Salary Currency Code

The newest version of the file employeedata.htm could be found in client\runtime subfolder of <build_home>, which contains installation version of IFS Applications  or in client\runtime folder in a delivery of changes in IFS Applications.

Basic Setup

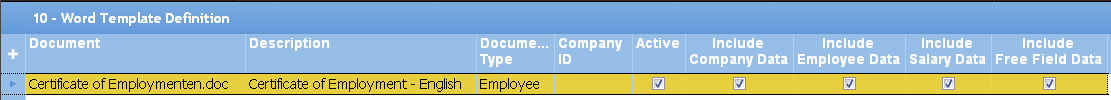

The basic data is setup in the window Word Template Definition located in the folder Human Resources / Organization Administration / Settings

The template file name is entered in column named Document. If the file name contains full path then the file is taken from local PC from that path. If the file name doesn't contain path then it is taken from client\runtime folder of application server. After defining of new word template in this form the template file should be placed in suitable folder.

Running Documents

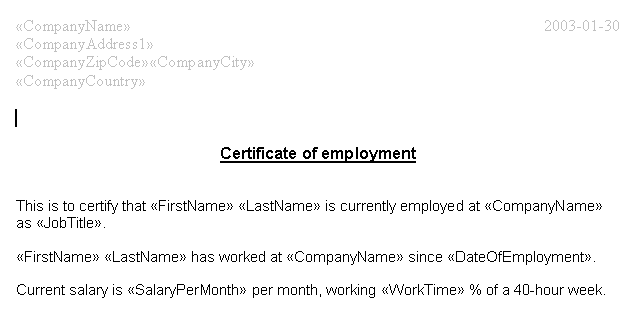

This section gives an example how information about the company and employee is merged into a mail merge document.

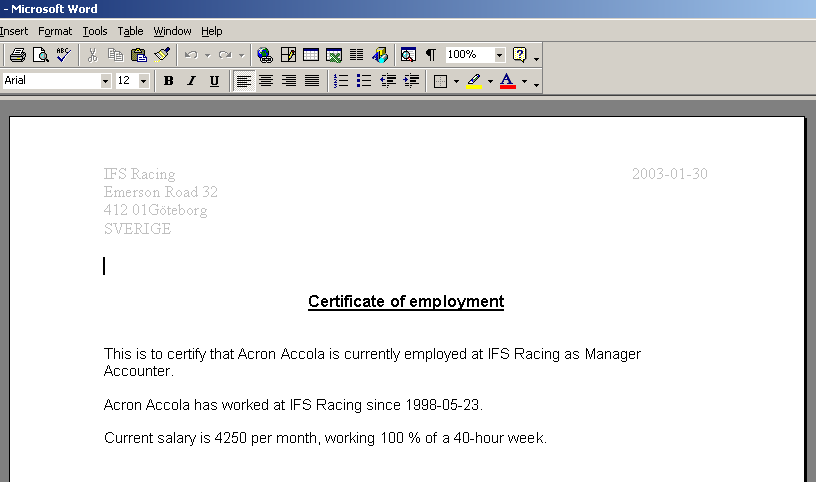

The result is a word document with formatted application data.



Working With Document Templates - MS Word 2003

Overview

To create a new document template the user needs to do the following,

All these steps are described in the sections below.

Create and Prepare Document

Start Microsoft Word and create a new blank Word document.

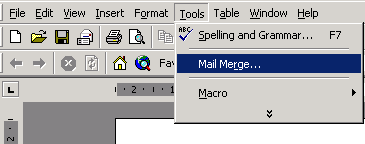

Go to Tools/ Mail Merge…

Next, choose to Create Form Letters…

Next, choose Active Window in the dialog.

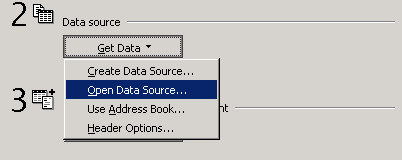

Select data source by choosing Open Data Source...

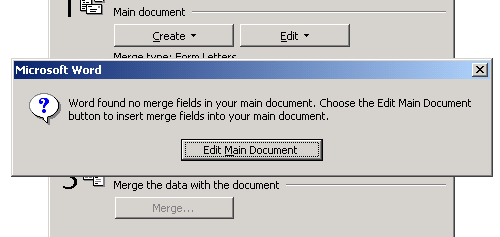

Browse to employeedata.htm and select that file, answer Yes on the next question to Edit Main Document

Add Text and Mail Merge Objects

In the upper left corner of the document the alternative Insert Merge Field appears.

All the data that may be fetched from the application is available in this list.

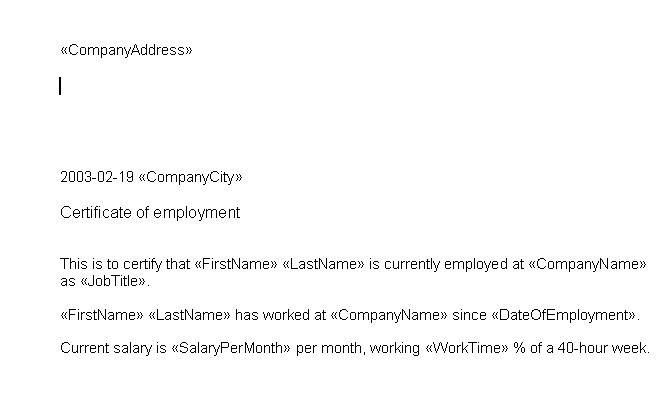

By choosing from these fields and adding text the template is constructed.

Add Visual Basic Macro

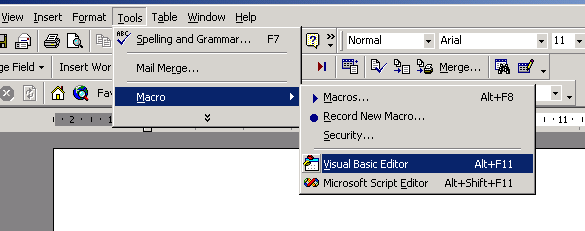

To add a Visual Basic Macro go to Tools / Macro / Visual Basic Editor



Add the following code (just copy the code and paste it in the code window),

Public Sub DoMailMerge(sFile As String)

   ActiveDocument.MailMerge.OpenDataSource Name:=sFile, _
       ConfirmConversions:=False, ReadOnly:=False, LinkToSource:=True, _
       AddToRecentFiles:=False, PasswordDocument:="", PasswordTemplate:="", _
       WritePasswordDocument:="", WritePasswordTemplate:="", Revert:=False, _
       Format:=wdOpenFormatAuto, Connection:="", SQLStatement:="", SQLStatement1 :=""

   With ActiveDocument.MailMerge
     .Destination = wdSendToNewDocument
     .MailAsAttachment = False
     .MailAddressFieldName = ""
     .MailSubject = ""
     .SuppressBlankLines = True

     With .DataSource
       .FirstRecord = wdDefaultFirstRecord
       .LastRecord = wdDefaultLastRecord
     End With

     .Execute Pause:=False
   End With
End Sub



It looks something like this,

Finally the document should be saved under an understandable name.

Add Document to Client and Test

Configuration should be done according to description from Basic Setup. Then it should be tested e.g. according to description from Running Documents.



Working With Document Templates - MS Word 2007

Overview

To create a new document template the user needs to do the following:

All these steps are described in the sections below.

Create and Prepare Document

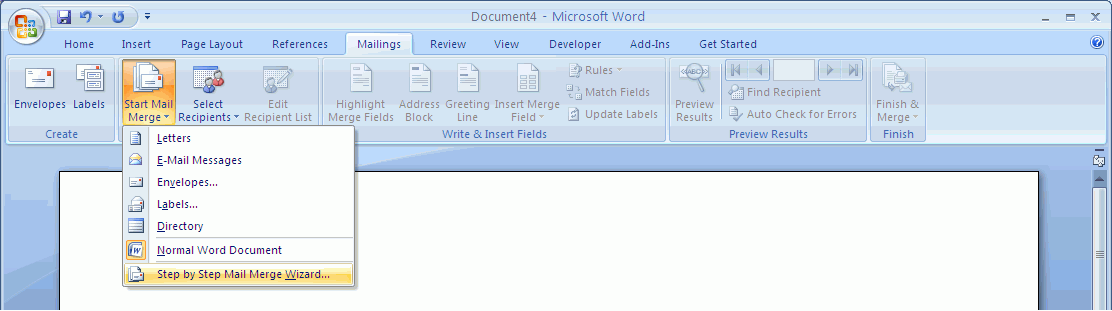

Start Microsoft Word and create a new blank Word document. Go to Mailings / Start Mail Merge.

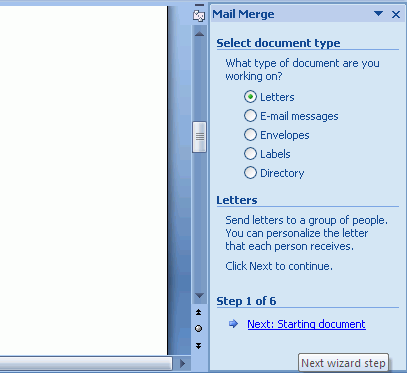

Choose to create Letters.

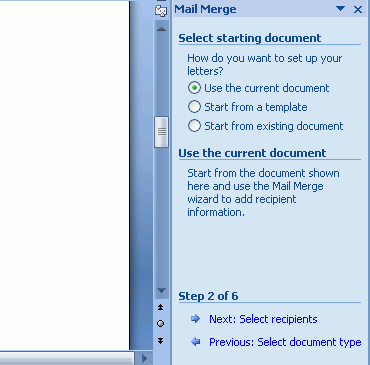

Click on Next and choose Use the current document.

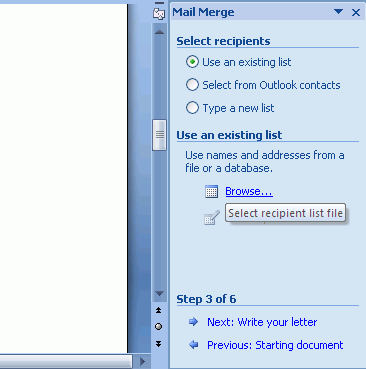

Click on Next and choose Use an existing list. Browse to employeedata.html and select that file.

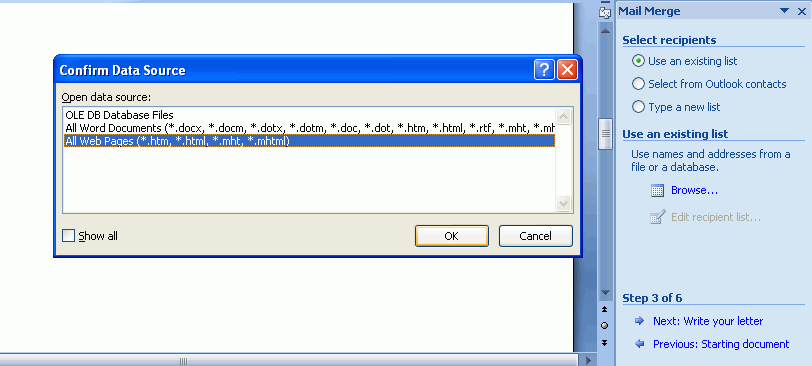

In Confirm Data Source, select All Web Pages and press OK.

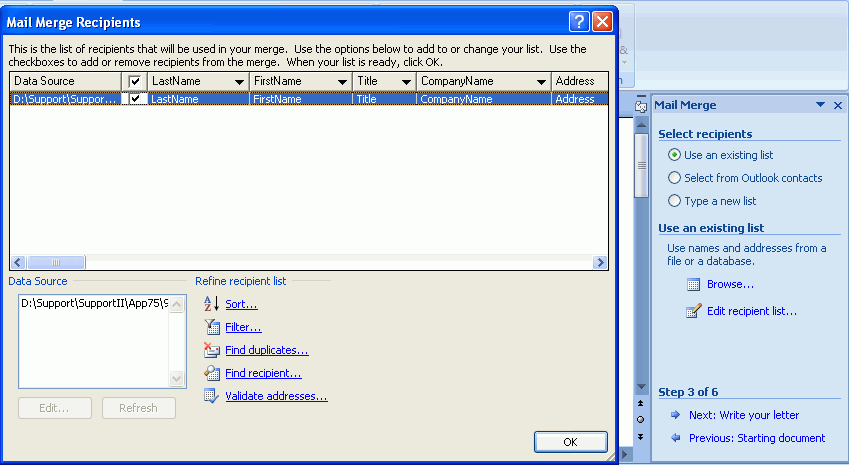

In Mail Merge Recipients check the Data Source and press OK. Then click on Next and write your Letter.



Add Text and Mail Merge Objects

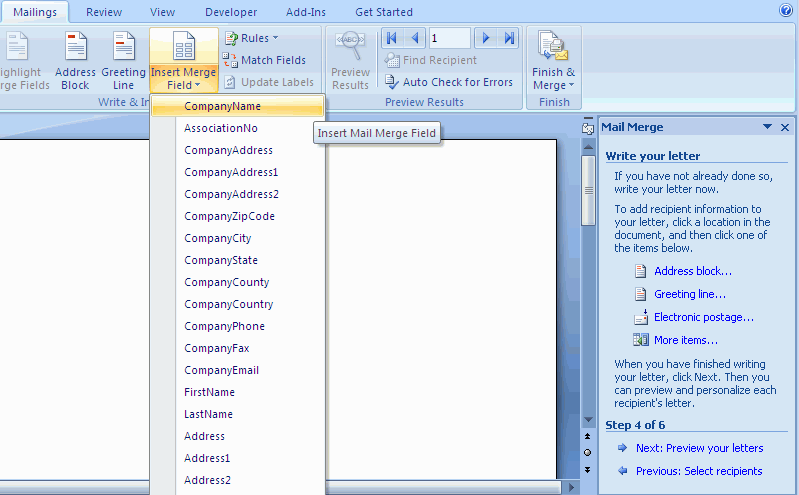

Click on Insert Merge Fields to get the list of data that may be fetched from the application.

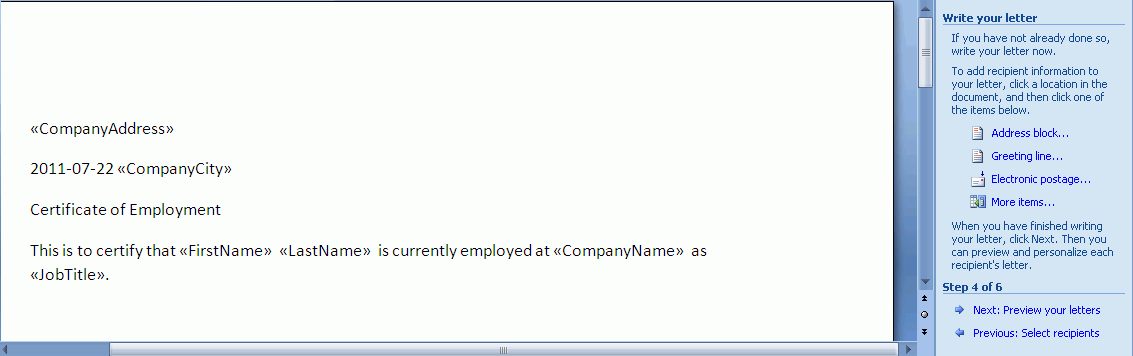

By choosing from these fields and adding text the template is constructed.



Add Visual Basic Macro

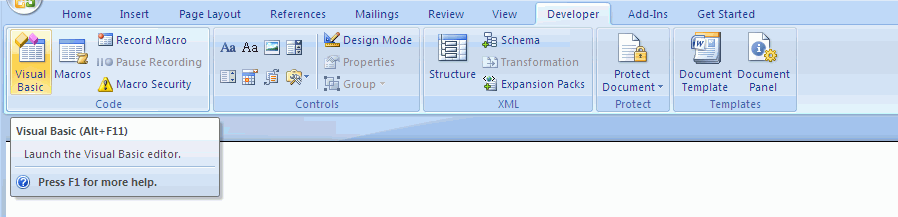

To add a Visual Basic Macro go to Developer / Visual Basic.

Add the following code (just copy the code and paste it in the code window ):

Public Sub DoMailMerge(sFile As String)

    ActiveDocument.MailMerge.OpenDataSource Name:=sFile, _
        ConfirmConversions:=False, ReadOnly:=False, LinkToSource:=True, _
        AddToRecentFiles:=False, PasswordDocument:="", PasswordTemplate:="", _
        WritePasswordDocument:="", WritePasswordTemplate:="", Revert:=False, _
        Format:=wdOpenFormatAuto, Connection:="", SQLStatement:="", SQLStatement1 _
        :=""
    With ActiveDocument.MailMerge
        .Destination = wdSendToNewDocument
        .MailAsAttachment = False
        .MailAddressFieldName = ""
        .MailSubject = ""
        .SuppressBlankLines = True
        With .DataSource
            .FirstRecord = wdDefaultFirstRecord
            .LastRecord = wdDefaultLastRecord
        End With
        .Execute Pause:=False
    End With
End Sub

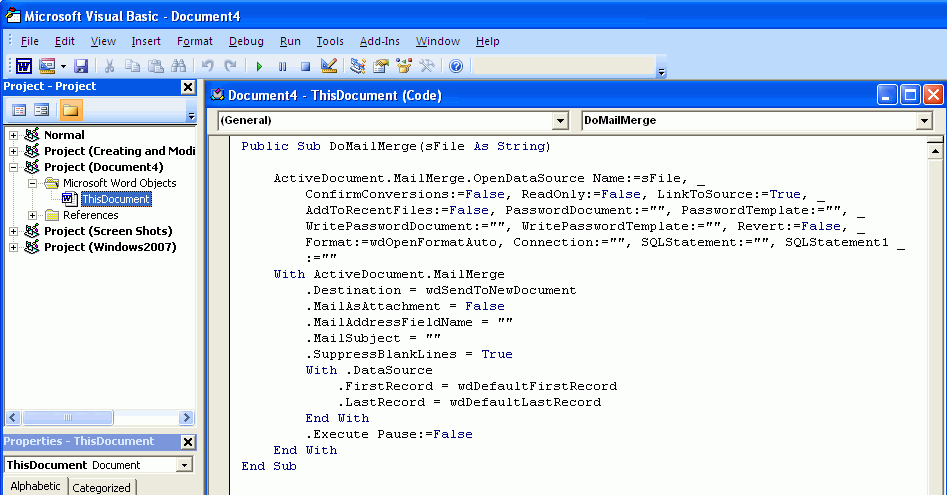

As in the example in the below:

Then save the file with file type set to Word Macro-Enabled Document (*.docm).



Add Document to Client and Test

Configuration should be done according to description from Basic Setup. Then it should be tested e.g. according to description from Running Documents.
