API explorer overview

API Explorer

API explorer page gives an overview of all existing projections/OData services in the system.

api explorer

Including in compatibility application type

By default, all the projections/OData services excluding the ones with ‘Integration’ category is exposed only through OAuth2 authenticated endpoints. You can read up on connecting using OAuth here.

In instances where it's not possible to use OAuth the administrator should selecttively enable 'Compatibility Application Type', after a careful consideratoin of the network security situation.

An admin user can use the command “Include in Compatibility Application Type”  and once done so, the API explorer shows it as ‘Yes’ under the column “Included in Compatibility Application Type” and enable three more commands as in below figure.



api explorer specification

Developers can use “OpenAPI v2”, “OpenAPI v3” and “OData Service Document” commands respectively to view Open API specification version 2, Open API specification version 3 and OData specification of the selected projection/ OData service.

Details on some of the attributes present in IFS API Explorer.

1.     API Class – Indicates level of responsibility IFS intends to take for an API over time. Applicable to API’s in core level only. This can hold two values premium and standard. Premium API’s will be having comprehensive documentation on the appropriate usage of the API and it will be maintained over time. In addition the changes to the API will be done whilst maintaining compatibility and we will be providing guidance and warnings to the customer when moving to new versions of the API.

Whilst for standard API’s we intend to provide an overview of API changes in conjunction with updates and releases.

2.      Layer - shows if a projection belongs to Core, Customization or Configuration.

3.     Deprecated -indicate if the API would be deprecated in the future. It’s either true or false, true indicates that the API would be deprecated and false indicates that the API would not be deprecated.

Navigating to API Documentation Page

IFS Rest API Documentation tool helps to visualize the oData Service Document in a developer friendly manner.



1.       Navigate to the Documentation section of the command group and select API Doc.

Navigating to API DOC

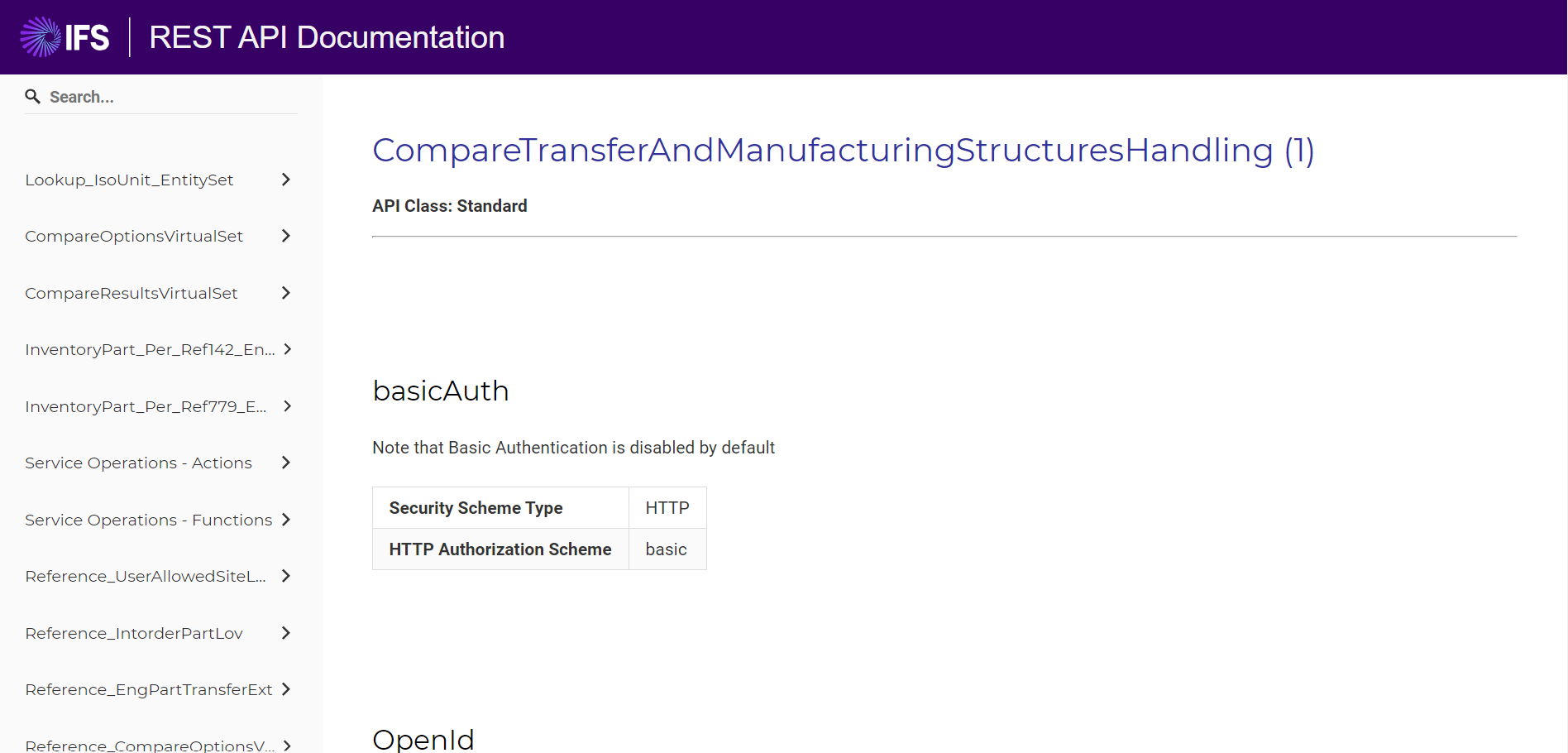

2.       REST API Documentation will open up in the new window.

   ifs rest api documentation
