Data Synchronization Administrator Lobby

The Data Synchronization Administrator Lobby pages highlight and visualize important information for Data Synchronization Administrator. There are two lobby pages related to Data Synchronization. One is for the Data Synchronization Administrator at the HUB. and the other is for Data Synchronization Administrator at the Satellite .

These pages are the starting point to find any issues that need further attention. Most of the page elements link to a window for handling/viewing the detailed data. These pages can be personalized and customized.

Read more about the IFS Lobby concept.

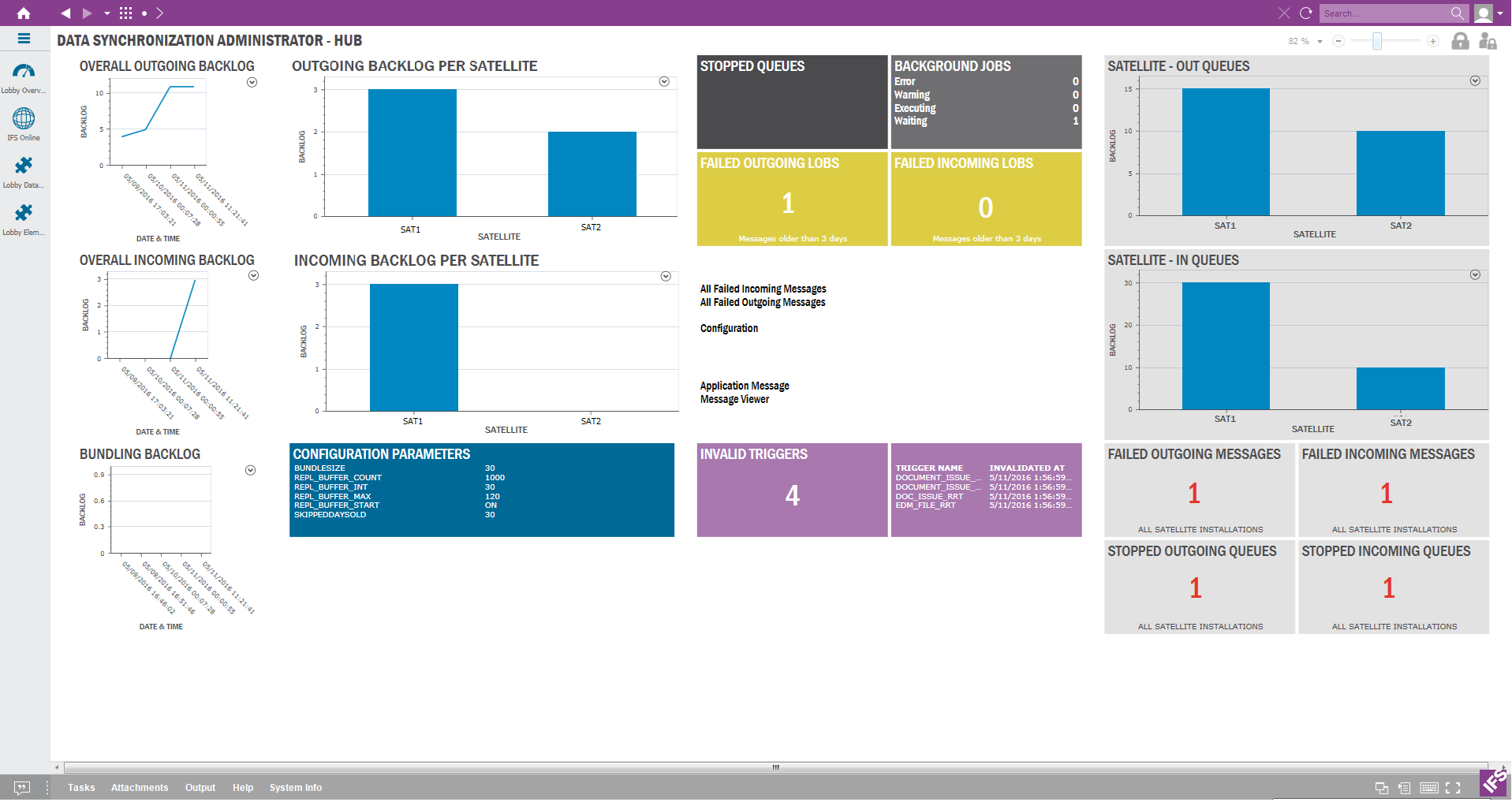

Data Synchronization Administrator - HUB

OVERALL OUTGOING/ INCOMING BACKLOG

This element shows the behavior of the OUT/IN Queues backlog (total number of messages to be processed) in the HUB. This data is collected by a Scheduled task which will be scheduled by the administrator .This element will show the statistics gathered by the last five executions of this schedule task.

BUNDLING BACKLOG

This element shows the behavior of the bundling backlog (number of transactional records to be bundled). This data is collected by a Scheduled task which will be scheduled by the administrator .This element will show the statistics gathered by the last five executions of this schedule task.

OUTGOING/INCOMING BACKLOG PER SATELLITE

his element shows the current satellite specific backlog of the messages to be processed at respective OUT/IN queues. This will show only the top five backlogs with satellite names.

SATELLITE STATUS SHOWED AT THE HUB

          The data is collected by a schedule task and forward the information as data synchronization service messages through a separate queue from all satellites to the HUB.

SATELLITE – OUT/IN QUEUES

          This element shows the satellite specific backlog of the messages to be processed at respective OUT/IN queues at the satellites.

STOPPED INCOMING/OUTGOING QUEUES

          This element shows the number of stopped IN/OUT data queues at the satellites.

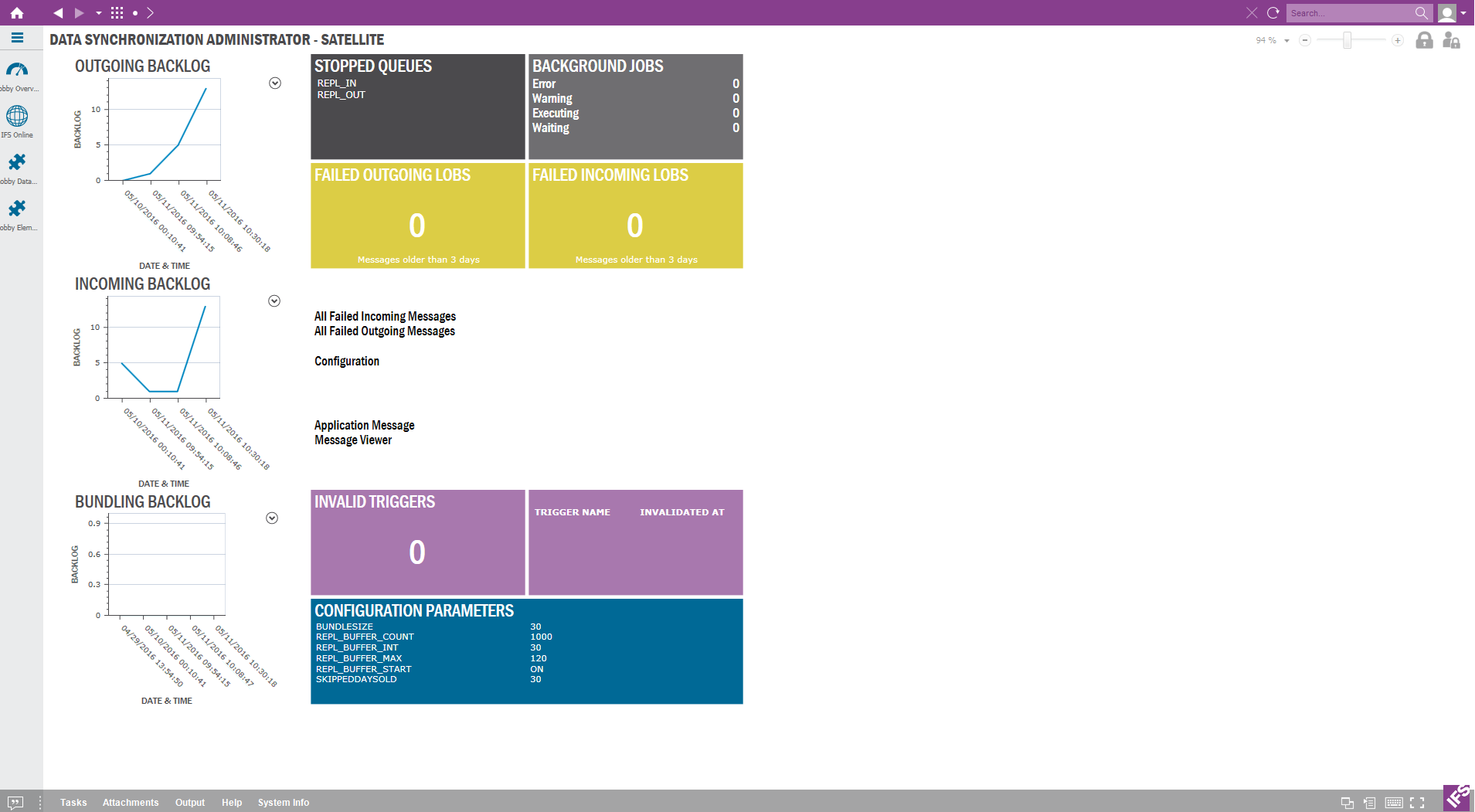

Data Synchronization Administrator – SATELLITE

 This lobby page displays the status of Data Synchronization at the Satellite installation.
