Logical Units

A Logical Unit is a business object such as a "Customer" or "Sales Part" object that defines the attributes, methods and relationships to other logical units. A typical Logical Unit consists of an Oracle table in the Data Storage Layer, PL/SQL Procedures and Functions and an Oracle View in the Business Logic Layer, and one or more Application Forms in the Presentation Layer.

These administration windows can be used to list existing logical units in the installation and do operations such as activating Logical Unit Rowkey.

Contents

• List Logical Units
• Logical Unit
• Window Operations
• Refresh Dictionary Cache
• Activating/Deactivating of Rowkey

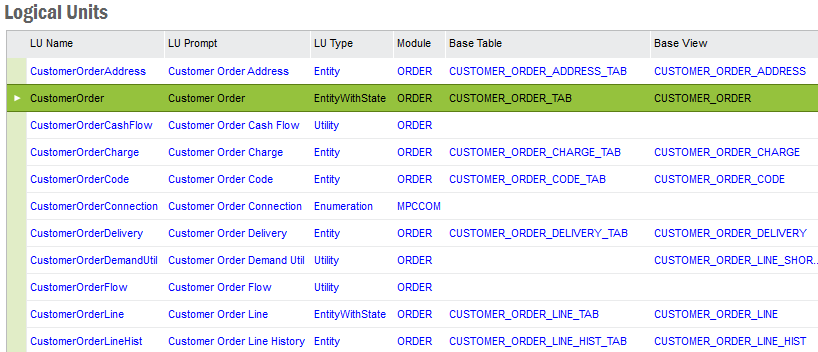

List Logical Units

This form lists all installed Logical Units. You can navigate to the detail form for a specific Logical Unit.

Logical Unit

The Logical Unit detail form gives you detailed information about the LU.

In this form you can see all details of a Logical Unit (LU). More specifically you can see if a LU has:

• Custom Fields
  Checked means that this LU has a Published Custom Fields, more details in the Custom Fields form.
• Information Cards
  Checked means that this LU has a Published Info Card, more details in the Info Cards form.
• Custom Enumerations
  Checked means that this LU is a Custom Enumeration, more details can be found by navigating to Custom Enumeration form.
• Search Domain
  Null means that no Search Domain exists for this LU.
  Disabled means that one or more Search Domain exists but is not Enabled.
  Enabled means that on or more Search Domain exists and is Enabled.
• Activated Rowkey
  If checked then Rowkey is activated.

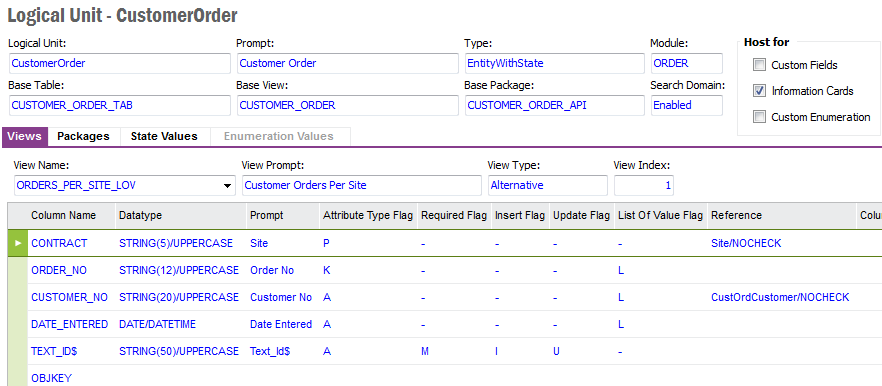

Views

This tab displays information about all views connected to this LU. By choosing view in the combobox you can get detailed information about each view belonging to this LU. All the view columns are listed in the detail table.

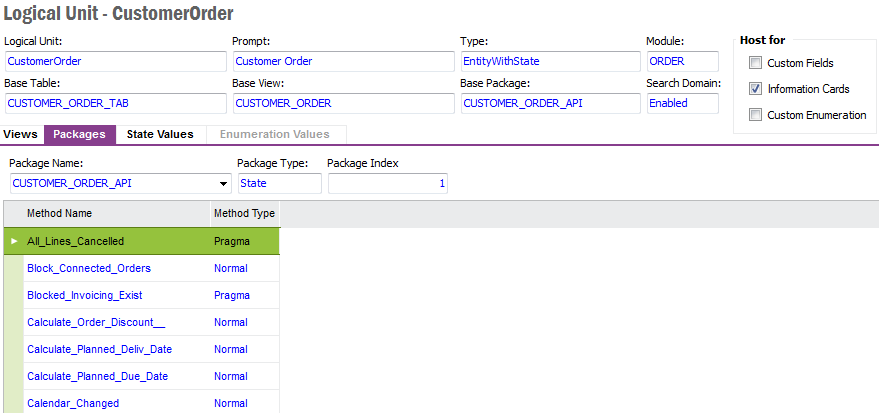

Packages

This tab displays information about all packages connected to this LU. By choosing package in the combobox you can get detailed information about each package methods belonging to this LU. All the package methods are listed in the detail table.

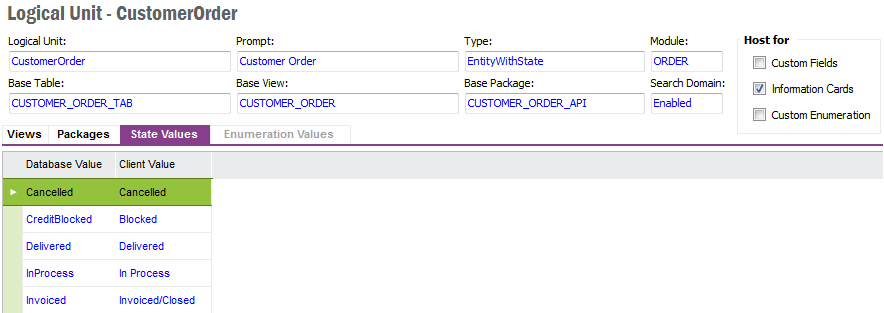

State values

If the LU is a This tab displays information about all packages connected to this LU. By choosing package in the combobox you can get detailed information about each package methods belonging to this LU. All the package methods are listed in the detail table.

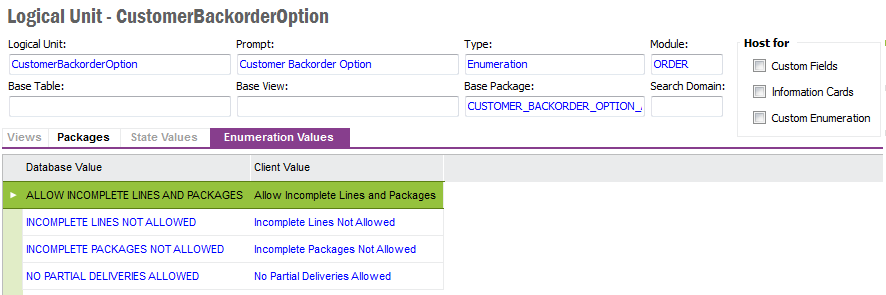

Enumeration values

If the LU is an Enumeration the tab shows the enumerations, you can see both the Database value and the Client values.

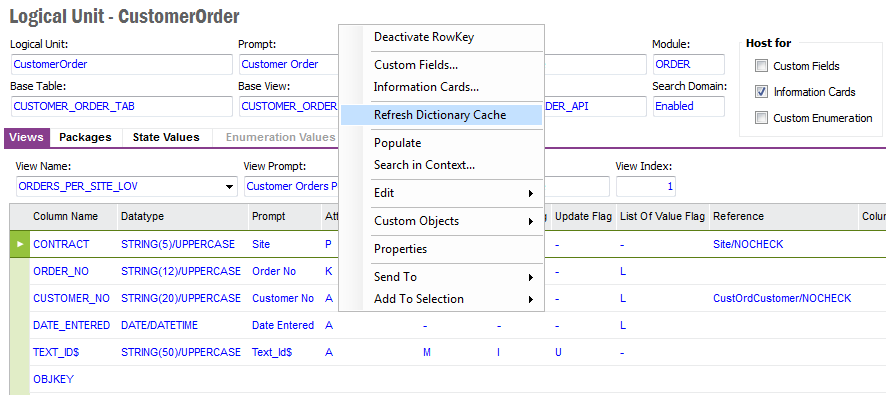

Window Operations

From the detail form of a Logical Unit it is possible to navigate to Custom Fields, Information Cards or Custom Enumeration. It is also possible to Activate or Deactivate RowKey and Refreshing the Dictionary Cache.

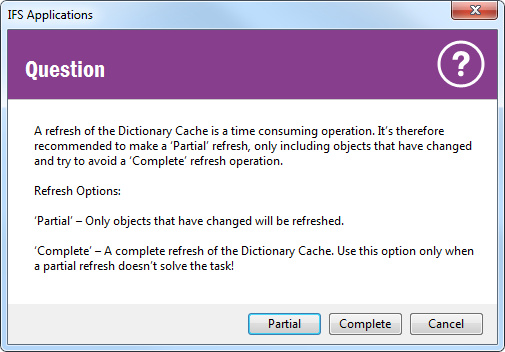

Refresh Dictionary Cache

It is possible to start a Refresh of the Dictionary cache from this form.

• Partial
  This option refreshes only Dictionary objects that are new or changed. You should always try to use Partial before using Complete since Complete might take a very long time.
• Complete
  This option flushes the Dictionary cache and refreshes it all from the beginning. This might be a very time consuming operation. Complete is intended for Installation scenario and when Partial doesn't solve the problem.

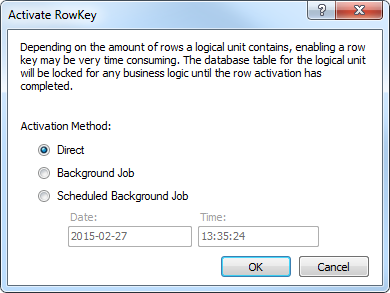

Activating/Deactivating of Rowkey

There are three different ways of executing Activation of Rowkey:

• Direct
  This means that you executes Activation of Rowkey online.
• Background job
  This means that you submit a background job that will run as quick as possible.
• Scheduled Background Job
  This means that this will be submitted as a background job that will run at a specific time.

Read more about Activate and deactivate rowkey


Note: Activation of Rowkey is considered to be an offline activity, meaning that it can disturb ongoing transactions in IFS Applications. You can compare Activating Rowkey with performing an upgrade or applying of a patch in IFS Applications.
