Configure Satellite

This page defines the way of configuring a Satellite to communicate with Hub.

Note: The permission set FND_SYNCADMIN should be granted to the user who do the Data Synchronization Configuration.

Contents

Installation Settings

Installation Settings contain information which is used as initial configuration to create all the message queues, routing rules and routing addresses required for sending/receiving data to/from the satellites, together with Satellite Configuration.

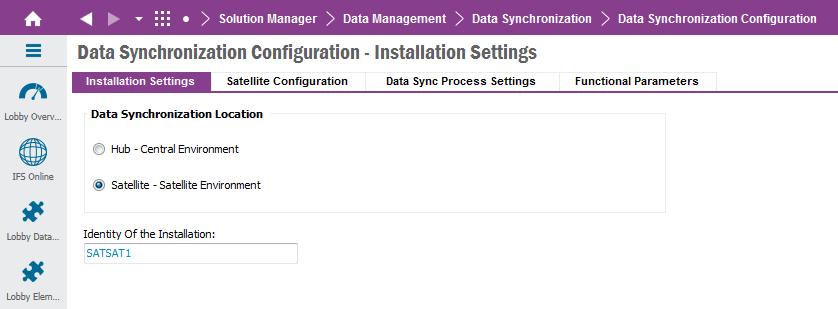

  1. Navigate to Solution Manager\Data Synchronization\Data Synchronization Configuration\Installation Settings tab
  2. Toggle radio button for Data Synchronization Location to Satellite
  3. Save.



Setting up Satellite Site Configuration

With Installation Settings completed, next step is to set up satellite configuration.

  1. Navigate to Solution Manager\Data Synchronization\Data Synchronization Configuration\Satellite Configuration tab
  2. Configure satellite and sites in Satellite Configuration window
  3. Save.

The field "Identity of the Installation" in window Installation Settings will be automatically generated as SAT<SATELLITE_NAME>



Generating Configuration Script

When generating configuration script, it gathers satellites and location information from Satellite Configuration and Installation Settings respectively and generate a SQL script. That particular SQL script contains a method call to generate application message queues, routing rules and routing addresses.

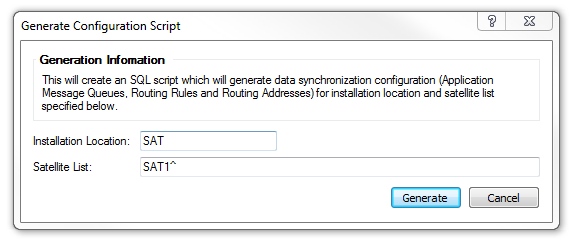

  1. Navigate to Solution Manager\Data Synchronization\Generate Configuration Script\'Generate Configuration Script' dialog box
  2. Installation Location and Satellites information are auto filled from the values gathered from Installation Settings and Satellite Configuration respectively.
  3. Generate and Save the script.

Executing Configuration Script

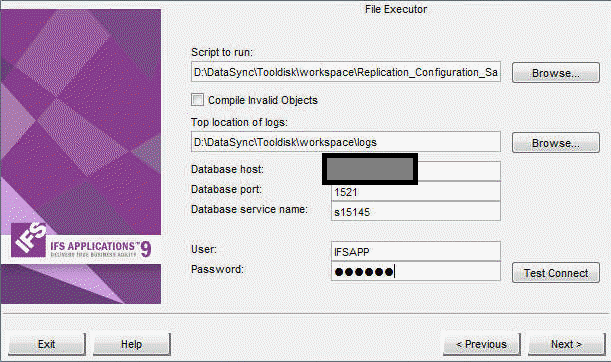

Execute the generated configuration script using the file executor option in installer.cmd which is located in <IFSHome>.

During the execution, message queues, routing rules and routing addresses should be created as below.

Queues   Following queues should be generated for normal data and LOBs.
  • REPL_IN
  • REPL_OUT
  • REPL_IN_LOB
  • REPL_OUT_LOB

Other than those queues, REPL_OUT_SERV queue should be created for sending statistics of satellite itself to hub.

Routing Rules Following inbound routing rules should be created.

Following outbound routing rules Should be created

Other than those routing rules, another outbound routing rule called REPL_SEND_SERV_DATA is generated to send statistics to Hub.

Routing Addresses Following Routing addresses should be created

Note: Sending routing addresses are generated with dummy URLs. Because of this, it is required to set URL of the Hub in sending routing addresses manually.

Data Sync Process Settings

It is required to configure the six parameters defined in Data Sync Process Settings
