Custom Pages

Custom Pages are application pages you create to view or edit the data in your Custom Logical Units.

Create New Custom Page

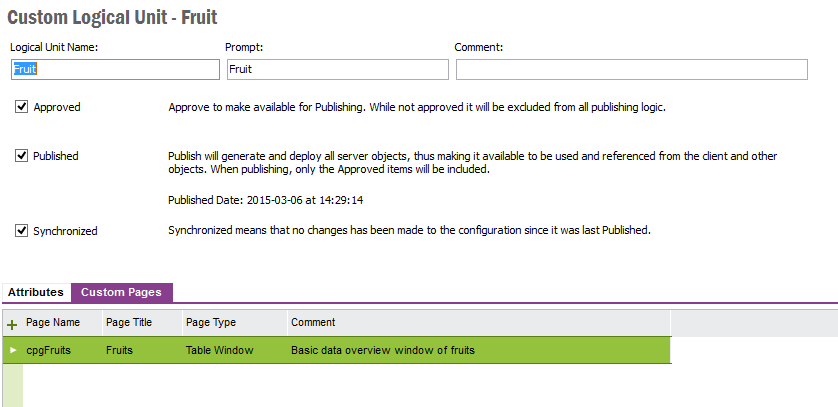

  1. Open the Custom Pages tab in the Custom Logical Unit window.
  2. Add a new row and enter a name, title and a page type. Only the characters A-Z, a-z and 0-9 are allowed for page names. All page names will be prefixed "cpg".
  3. Save the new Custom Page. This will create a page with columns that matches the published attributes on your Custom LU.
  4. Open the context menu on the row, and click Manage Grants and grant the page to the permission sets that should include this page. All user granted to permission set CUSTOM_OBJECTS_ADMIN will be granted the page automatically.
  5. To test your new page open the context menu on the row, and click View Page.

Add Page To Navigator

To make a custom page accessible for end users, it needs to be added to the navigator. Navigator configuration is stored in the profile. To change the navigator for other users, you need to use of the base profile functionality.

  1. Open the context menu in the navigator where you like your new page to appear.
  2. Click New -> Item...
  3. Click the Custom Page button to filter out custom pages.
  4. Click the Show All radio button to see a list of all custom pages currently in the system.
  5. Select your page and click OK.

Modify Page Layout

After your custom page is created, the layout can be modified.

  1. Go to the page you want to modify.
  2. To modify a form page, use the Layout Functionality. To modify a table, use the Column Chooser. NB: Use the base profile functionality to distribute layouts to users.
  3. To synchronize the modifications of Custom Pages, use
  4. Synchronizing Custom Pages.

Update Record Selector

After your Custom Page is created, the default record selector can be modified using Update Record Selector RMB Option.

Default Record Selector is generated with the first attribute according to the alphabetical order of the Custom Attributes in the relevant Logical Unit.

  1. Go the Custom Logical Unit window-> Custom Pages Tab and choose the Custom Page which you want to modify the Default Record Selector
  2. To modify Default Record Selector, use the RMB option Update Record Selector on Custom Page and choose the Items you need to add or remove from the Record Selector on your preference and then Click OK.
  3. Use  View Page RMB Option and go to the Custom Page and populate. Record Selector will be displayed with a modifications that have been applied.

Notes:
1. If any attribute is removed or added to the custom pages in Attributes tab Update Page Layout should be performed in order to reflect those changes in Record Selector window.
2. Enumeration type fields will not be listed in Record selector or Update Record Selector dialog due to a limitation.

Default Homepage

If you have multiple pages on a custom logical unit, it might be desirable to control which is used as zoom target. To change that, open the context menu on a page and click Default Home Page.
