Handle Result¶

The result returned from scheduling is called a Scheduling Plan and is handled automatically by the IFS Optimization Framework. In order to use the result the returned scheduling entities have corresponding methods for handling the data returned. These methods will have to be overridden in the PL/SQL package file in the Scheduling Model. Custom application logic can be added in these methods based on each scheduling entity returned. It's also possible to add custom application logic that should happen before handling all the returned entities, e.g. clearing out old data. The method Import_Pre_Processing can be overridden for this purpose. Similarly it's also possible to add custom application logic that should happen after handling all the returned entities, e.g. start processing the returned data. The method Import_Post_Processing can be overridden for this purpose. The entity Plan is the head entity for the Scheduling Plan and is handled first.

Handled entities and corresponding methods¶

Entity	Method
Aggregate_Member	Accept_Aggregate_Member
Aggregated_Activity	Accept_Aggregated_Activity
Allocation	Accept_Allocation
Allocation_Data	Accept_Allocation_Data
Allocation_Operation	Accept_Allocation_Operation
Allocation_Part	Accept_Allocation_Part
Appointment_Offer	Accept_Appointment_Offer
Appointment_Summary	Accept_Appointment_Summary
Explanation_Message_Param	Accept_Explan_Message_Param
Explanation_Outcome	Accept_Explanation_Outcome
Explanation_Outcome_Alloc	Accept_Explan_Outcome_Alloc
Explanation_Outcome_Message	Accept_Explanation_Outcome_Msg
Explanation_Response	Accept_Explanation_Response
Isochrone_Point	Accept_Isochrone_Point
Plan	Accept_Plan
Plan_Area	Accept_Plan_Area
Plan_Break	Accept_Plan_Break
Plan_Deletion	Accept_Plan_Deletion
Plan_Depot_Transfer	Accept_Plan_Depot_Transfer
Plan_Point	Accept_Plan_Point
Plan_Polygon	Accept_Plan_Polygon
Plan_Resource	Accept_Plan_Resource
Plan_Route	Accept_Plan_Route
Plan_Split_Resource_Order	Accept_Plan_Split_Res_Order
Plan_Travel	Accept_Plan_Travel
Plan_Travel_Part_Usage	Accept_Plan_Travel_Part_Usage
Resource_Movement	Accept_Resource_Movement
Schedule_Exception	Accept_Schedule_Exception
Schedule_Exception_Data	Accept_Schedule_Exception_Data
Suggested_Dispatch	Accept_Suggested_Dispatch
Suggested_Split_Res_Order	Accept_Suggested_Split_Res_Ord
Travel_Detail	Accept_Travel_Detail

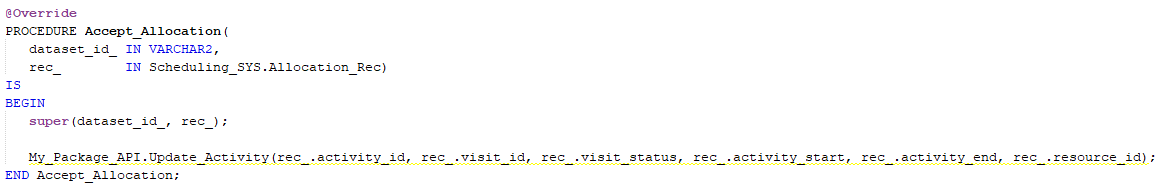

Example¶

Updates from PSO Workbench¶

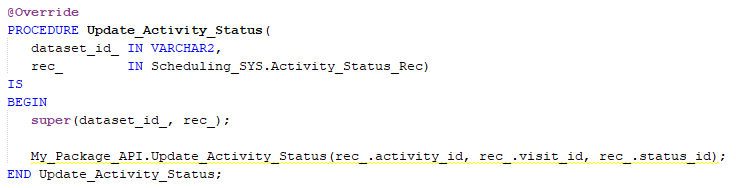

Updates made in the PSO Workbench will be handled in a similar way to the Scheduling Plan but in a separate broadcast. The updated scheduling entities have corresponding methods for handling the updated data. These methods will have to be overridden in the PL/SQL package file in the Scheduling Model. Custom application logic can be added in these methods based on each updated scheduling entity. It's also possible to add custom application logic that should happen before handling all the updated entities. The method Update_Pre_Processing can be overridden for this purpose. Similarly it's also possible to add custom application logic that should happen after handling all the updated entities, e.g. start processing the updated data. The method Update_Post_Processing can be overridden for this purpose. The entity Input_Reference is the head entity for Workbench updates and is handled first.

Handled entities and corresponding methods¶

Entity	Method
Activity_Status	Update_Activity_Status
External_Change_Req_Resource	Update_Ext_Change_Req_Resource
External_Change_Request	Update_External_Change_Request
External_Change_Request_Item	Update_Ext_Change_Request_Item
Input_Reference	Update_Input_Reference
Object_Deletion	Update_Object_Deletion
Schedule_Event	Update_Schedule_Event
Schedule_Exception_Response	Update_Schedule_Except_Resp
Visit_Part	Update_Visit_Part
