Additional Configurations

This page defines the additional configurations required for Data Synchronizations in both Hub and Satellites. However necessity of these configurations can be changed according to the customer requirements.

Additional Port Configurations
User and Permission Sets
Parameter Settings for HTTP_SENDER1
Notification for failed Synchronization messages
Notification for failed Synchronization Lob messages
Functional Parameters

Additional Port Configurations

Optimized usage of the bandwidth is a most important aspect for the data synchronization. If LOB (Documents, Images, Base Profiles) and Normal Data (created from the transactions like creating a Purchase order, releasing a Customer order) are received from the same port, then normal data may have to wait until large sized LOBs are sent entirely. There for it is important to be able to configure two separate ports for normal data and LOB data to avoid unnecessary traffic in the network. If required it should be possible to configure any number of ports as needed.

Configuring additional listen ports is possible using a Reverse Proxy Server. Here we will discuss how Apache HTTP server can be configured as a Reverse Proxy Server to enable additional communication ports.

Download and install Apche HTTPD server.
Go to <Apache_Install_Dir>\conf and open httpd.conf for editing.

Load the mod_proxy moudles. Uncomment the following LoadModule directives:

LoadModule        proxy_module modules/mod_proxy.so
LoadModule	proxy_http_module modules/mod_proxy_http.so.

Add the required listen ports: Listen 55080
Add the following proxy directives to forward the requests that come to the listen ports of the Apache HTTPD server to the application server URL.
```
ProxyPass        "/" 	"http://myhost.mydomain.com:58080/"
ProxyPassReverse "/"       "http://myhost.mydomain.com:58080/"
```
Start the Apache HTTPD server. Go to <Apache_Install_Dir>\bin and execute httpd.exe.

Note: It is important to use these additional ports in routing addresses generated for sending normal data and LOB data.

User and Permission Sets

IFSSYNC

IFSSYNC is a system User which is created for internal operations in Data Synchronizations. This user should not be mapped to an actual end user but should be used only for technical purposes. IFSSYNC is granted new permission set called 'FND_SYNC'. User account for IFSSYNC is created during the deployment of FNDRPL to database.

Note: IFSSYNC is created with a randomly generated password and it has some sort of elevated privileges. Hence, it is important to change the password of this user, before starting Data Synchronization between IFS installations. After changing the password, It is important to use that changed password in the routing addresses which used for data synchronization.

Grant Access to Companies and Sites for IFSSYNC User

Navigate to Solution Manager\Security\Users\Create User
Fetch 'IFSSYNC'
Expand Companies & Sites
Expand Companies and check relevant companies
Expand Sites and check relevant sites
Save and Refresh the Security Cache

FND_SYNC

FND_SYNC is a predefined permission set which is created upon installation of IFS Applications with a build home that has the component FNDRPL. This role is granted to IFSSYNC user. Since this is used for internal operations in Data Synchronization, it is recommended that this role is left as it is.

FND_SYNCADMIN

FND_SYNCADMIN is also a predefined permission set which can be used for administration related works in Data Synchronizations. This is also created upon installation of IFS Applications with a build home that has the component FNDRPL. This role has every grants necessary for a user to be an administrator in Data Synchronizations. FND_RUNTIME is granted to this role.

Parameter Setting for HTTP_SENDER1

Bundled data synchronization messages are sent via http sender. If the connection between Hub and Satellites goes down, message is not delivered and the application message moves to 'Waiting' state. After the number of retries if there is still a connection problem, that particular message is failed and queue is stopped. Hence, we need to make sure that http sender is configured with a reasonable number of retires until the connection problems between Hub and Satellite is resolved. Refer to Tuning and Trouble Shooting for more information.

Note: These values can be changed according to the customer requirements.

Notification for failed Synchronization messages

When a data synchronization message is failed, there should be a mechanism to convey it to an authorized person. There is a database task called 'Restart Data Synchronization Messages' to restart a failed synchronization message and when it is reached to maximum attempt of restarts, it sends a notification. This notification can be an E-mail, Application Message, Online SQL, etc. Event for sending this notification is generated when FNDRPL is deployed to the database. Hence, it is required to configure an event action for that Event.

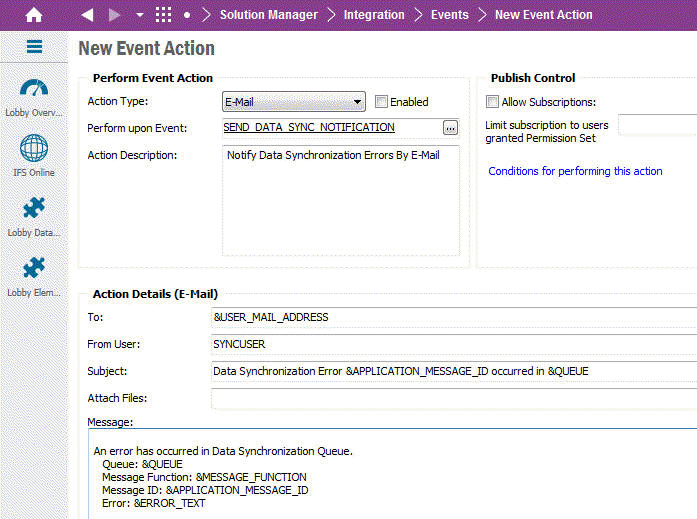

Following example shows the way of configuring an E-mail for sending notifications.

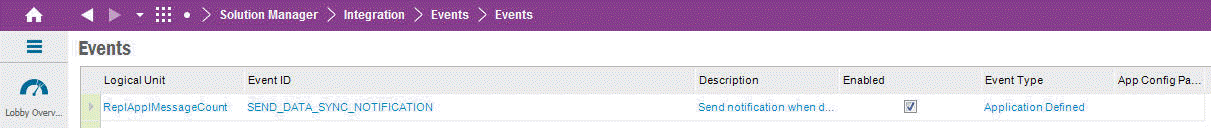

Create a Even action for Event 'SEND_DATA_SYNC_NOTIFICATION'

Enable Event.

Notification for failed Synchronization Lob messages

There is another database task called 'Restart Data Synchronization Lob Messages' to restart a failed lob message and when it is reached to maximum attempt of restarts, it sends a notification. This notification can be an E-mail, Application Message, Online SQL, etc. Event for sending this notification is generated when FNDRPL is deployed to the database. Hence, it is required to configure an event action for that Event.

Following example shows the way of configuring an E-mail for sending notifications for lob messages.

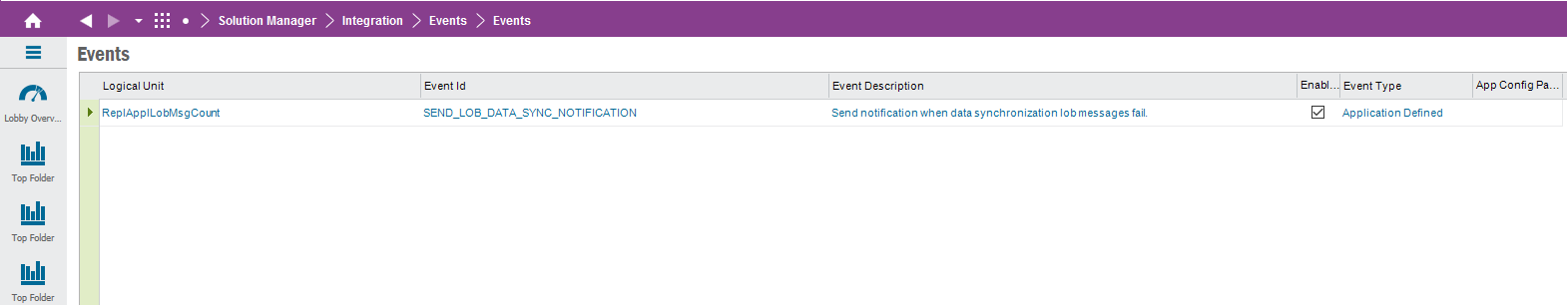

Create a Even action for Event 'SEND_LOB_DATA_SYNC_NOTIFICATION'

Enable Event.

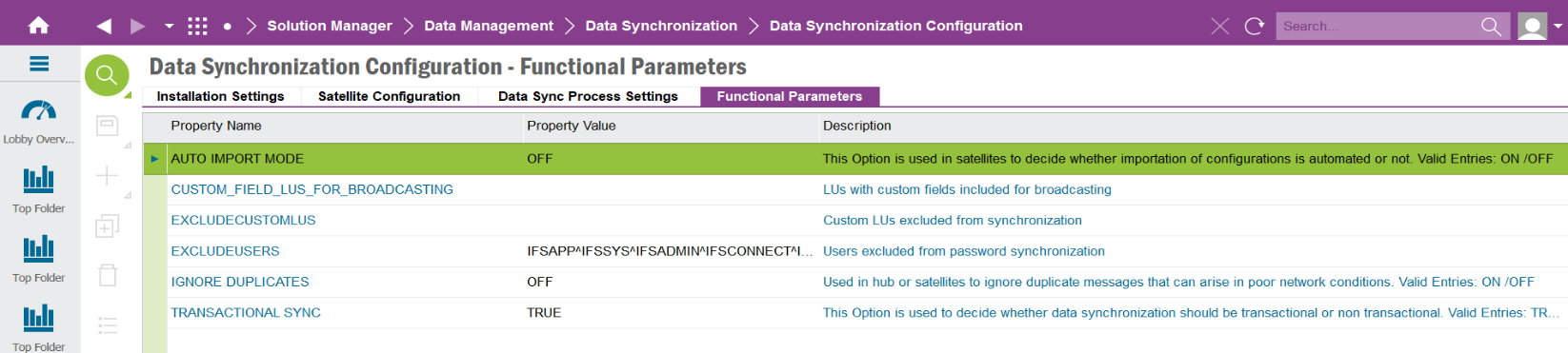

Functional Parameters

Excluded User - Users defined in this parameter are excluded from Password Synchronization. Predefined value of this parameter is a combination of system users such as IFSAPP, IFSADMIN, IFSSYNC, etc. Addition to system users, if particular Foundation1 user does not need to send his password to other sites, his user id can be added to this excluded user combination.
AUTO IMPORT MODE - This is used for synchronization of configurations. Values of this parameter can be 'ON' or 'OFF' and 'OFF' is the default value.
IGNORE DUPLICATES - Sometimes when the network conditions are poor between the HUB and Satellites messages send from HUB to Satellite and vice versa can fail because of the timeout of the HTTP sender. Then such failed messages will be resent by the "Restart Failed Messages" database task. This duplicate message will be successfully processed at the receiving site. However when the network conditions improve the original message will also reach the receiving side eventually. Now since the duplicate of this message has already been processed this message can fail at the receiving end (If this is a record insert). This will result in a message failure and the corresponding queue will stop. There is logic in place to stop this from happening. When this functional parameter is ON the messages with same sender message id will be ignored and will not be processed. A given number of previously successfully finished messages are analyzed at the receiving side to determine if the same sender message id occurs in the data received. If found the message will be ignored and will not be processed. If this functional parameter is OFF this behaviour is not there. This functionality is available for both Data and LOB messages. The allowed values are ON and OFF.
EXCLUDEDCUSTOMLUS - Data belongs to the defined Custom LUs in this parameter are excluded from synchronizing. Use '^' character to seperate list of LUs in this parameter. By using * as the value for this parameter, you can exclude all the Custom LUs from synchronizing,
CUSTOM_FIELD_LUS_FOR_BROADCASTING - If the relavent LU is consist with custom fields and the broadcasting is enabled, the LU name need to be added to this parameter. Otherwise only the Standard fields will be broadcasted. Use '^' character to seperate list of LUs in this parameter. By using * as the value for this parameter, you can include all the LUs for broadcasting with their custom fileds.
TRANSACTIONAL SYNC - This is a setting that used to decide whether the Data Synchronization is done with a transactional based bundling of data or not. Data Sync functionality is initially developed to synchronize data ensure transactional consistency between sites. But with the different usages of this functionality such as synchronize (migrate) data among sites specially when offshore sites are going live this transactional based bundling may not important. To provide that capability, this new functional setting can be used. The default value of this setting is 'TRUE' which is the default behavior of Data Synchronization which consider the bundling of data in to the same bundle which belongs to same transaction. But if there is a need to synchronize data which the transactional bundling is not required you can set this parameter value to 'FALSE'. From this you can get a better performance. But use this parameter carefully since if you set it to 'FALSE' to get better performance then the Data Synchronization functionality will no longer take care of the transactional bundling.
CUSTOM_LU_SKIP_DELETE - This option used to decide whether custom LU remove message should skip or not, when the record is not found. The allowed values are ON and OFF. 'OFF' is the default value.
CUSTOM_LU_SKIP_DELETE_LIST - List of custom LUs included for skipping when CUSTOM_LU_SKIP_DELETE parameter is ON. Use '^' character to separate list of LUs in this parameter(Eg:CustLu1^CustLu2). By using * as the value, you can include all the LUs to the skip list.
