Projection Data Source Designer¶
When creating a projection data source, properties in following sections need to be defined.
Data¶
There are two types of data roots in projection data sources.
-
Entity Set: An entity set returns a set of records based on an entity. It returns a fixed set of data. Filtering and ordering can be done on top of that data set.
-
Function: A function returns a set of records, a primitive, a structure or a record set of structure and can be parameterized. So they can be used to get data according to user's inputs. Similar to entity sets, filtering and ordering can be done on functions which returns a set of records.
Functions which return a set of structures and functions which accept complex typed parameters are not supported in lobby data source designer.
This section includes following configuration settings:
| Property | Description |
|---|---|
| Name | The name of the Data Source |
| .merge_file_a07008 | |
| Projection | The projection used to create the data source This projection could be a standard projection or a query projection created via Query Designer. |
| Projection | The projection used to create the data source This projection could be a standard projection or a query projection created via Query Designer. |
| .merge_file_a28364 | |
| Data Root | All available entity sets and functions in the selected projection are listed here. Select appropriate entity set or function for the data source from the list. If the selected data root has been created with the query designer, the command  is enabled. This will open the query designer with the definition of the selected data root. |
| Parameters | Parameters of the selected function are listed here. Constant values, CSVs or page parameters can be provided as parameter values. Data set can be fetched according to the user's input when page parameters are plugged to function parameters This feature is not available for entity sets |
| Filter | The condition to be used for the '$filter' section in the query. The condition needs to be defined according to ODATA syntax. Also it is possible to use Page Parameters defined in the Page Properties Configuration dialog. E.g. Company eq $COMPANY$. (Remember to append the $ sign for page parameters) |
| Group By | The column to be used to group the data |
| Order By | The column to be used to order the data. Default is ascending. |
Figure: Example definition of a data source using a projection function
Columns¶
This section is used to manage which columns to use from the output of the data root. You can select columns, remove columns and re-arrange the order of the columns.
| Property | Description |
|---|---|
| Column | This shows the selected column name as it appears in the database table. |
| Name | Users can define an alias for the selected column name and this Name is used to refer the selected column for the rest of the lobby designers. |
| Data Type | This indicates that, what is the data type of the selected column. This field is read only. |
Figure: Columns Section
Click View Columns button which opens the column chooser dialog. All available columns in the view are displayed in the left side of the dialog, select a column and click on the swap button in the middle to add it.
Since functions which return primitives have no columns, there will be a generic column called 'Value' in the column chooser
¶

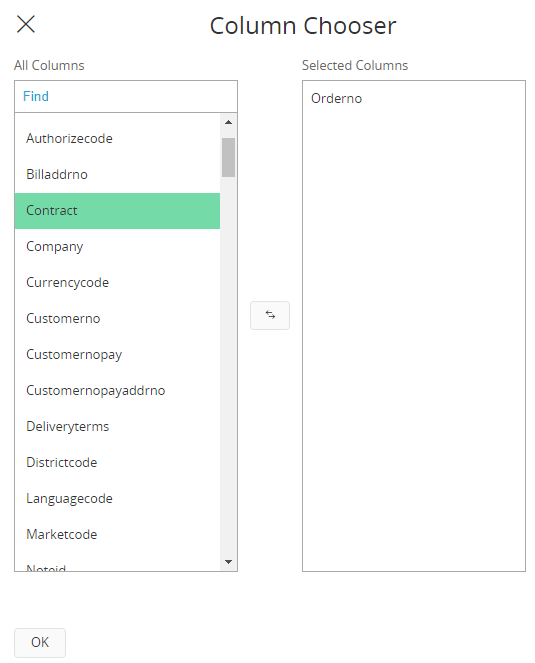

Figure:Column Chooser
Information¶
In this section you can see/modify the author of the data source, define key words to make it easier to find the data source in the Data Source Designer and write a text with additional information about the page etc. The following is available:
| Property | Description |
|---|---|
| Component | Component of the Data Source (Default is 'CONFIG') |
| Author | Author of the Data Source |
| Keywords | Keywords which can be used when searching for the Data Source |
| Descriptive Text | Description about the Data Source |
| Last Modified | Last Modified Date and Time of the Data Source |
| Copied From | If the Data Source is a copy of another Data Source, this field shows the name of the Original Data Source |
Figure: Information Section
