Manufacturing Part Master data integration¶

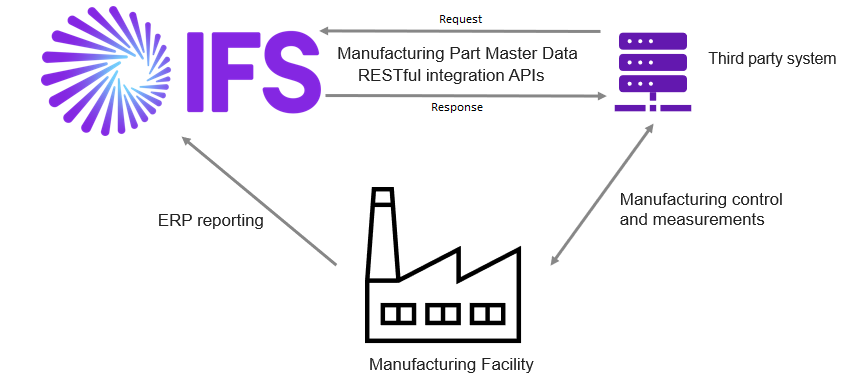

The integration APIs provided by the ManufacturingPartService and the InventoryPartService Projections facilitate the seamless integration of Manufacturing Master data with third-party systems.
These APIs are RESTful Post APIs that return structured information based on filter conditions specified in the payload body. For a comprehensive list of API attributes and payload examples, please refer to the API documentation.
InventoryPartService¶
This projection resides in the INVENT component and is not part of the MES permission set MANUF_EXECUTION.
GetPartInformation¶
The InventoryPartService Projection contain the GetPartInformation integration API. This API returns a structure containing inventory part and characteristics information. It allows you to select specific information based on filter conditions in the payload, including all parts on the site, a specific part, or parts with inventory part information updated within a specified number of days. Please note that changes in characteristics information are not considered when applying the change filter.
ManufacturingPartService¶
The ManufacturingPartService Projection, in the MFGEXE component, contains the integration APIs GetParts, GetPartStructureInformation, GetPartRecipeStructure and GetPartRoutingInformation.
GetParts¶
GetParts returns a list of inventory parts along with general part information. This information complements what is provided by the InventoryPartService API. For each part, you'll also receive a list of connected product structures and routings, categorized by revisions and alternates. This data is intended for use as input keys in subsequent APIs within the ManufacturingPartService Projection.
Filter options in the payload allow you to retrieve all inventory parts on a site, a specific part number, part type, inventory part status, or parts that have been recently updated. The time filter considers changes that have updated tables related to the Main Master Part tab, Main Inventory Part tab, Routing Header, Routing Alternate, Routing Operation, Routing Tool, Routing Guidelines, Structure Header, Structure Alternate, Structure Components, or Structure Guidelines for the specified part.
Deleted lines are not captured as a recent change. The ChangedSinceNumberOfDays
filter only reads from the change date in the lines and does not maintain separate logs. This information is lost when a line is deleted. In cases where lines must be deleted, it is recommended to update the revision to capture the change through this API.
GetPartStructureInformation¶
This API retrieves product structure information and provides a list of component information and connected guidelines. It requires input parameters such as site, Part, Revision, Alternate, and Structure Type. Please be aware that Planning Part Structure and Configuration Part Structure are not supported by this API.
GetPartRecipeStructure¶
GetPartRecipeStructure returns recipe information and provides a list of component information and connected guidelines. Similar to other APIs, it relies on input parameters such as site, Part, Revision, Alternate, and Structure Type.
GetPartRoutingInformation¶
This API retrieves routing information and provides a list of operation information along with connected tools and guidelines. It requires input parameters including site, Part, Revision, Alternate, and Routing Type. Notably, routing structures for Configuration parts are not supported by this API.
Example of use case¶
Suppose an external MES system needs Bill Of Materials and Routing Operation part master data. In this case, it can utilize the GetParts API to request general information about parts on a site. The response can then be used to iterate requests to the GetPartStructureInformation and GetPartRoutingInformation APIs to obtain detailed information for each part. This orchestration can be handled by middleware that enriches and transforms the data before passing it on to the MES.
Furthermore, this process can be used to keep the MES system updated. By leveraging the change filter in the GetParts API, unnecessary network traffic and loads can be minimized, ensuring efficient data synchronization.
