Outbound Communication

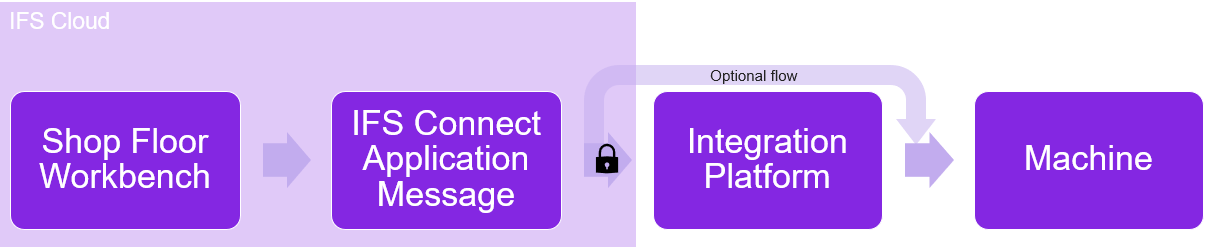

Outbound Communication enables you to send start and stop commands to a machine using, for instance, the shop floor workbench. In this example, the Application Messages are enriched with operation information and sent outbound to a device.

image-20220714145222686

This action is triggered by the events "Start operation" and "Stop operation." You can use any client that allows you to invoke these actions to generate the outbound message; it's not limited to the Shop floor workbench.

Prerequisites

Before configuring outbound communication, there are some essential considerations:

  • Safety: Conduct a risk assessment and implement necessary safety steps. The remote start and stop actions should never compromise the health and safety of any person.
  • Machine Compatibility: Ensure that the machine supports the required connections for remote control.
  • Network and Security: Address network access, security, and routing requirements to establish secure communication.
  • Message Protocol: Ensure that the machine language and message protocol can be handled effectively.

Setup Outbound Communication

To set up outbound communication, follow these steps:

Work Center - Send IoT Event to Device

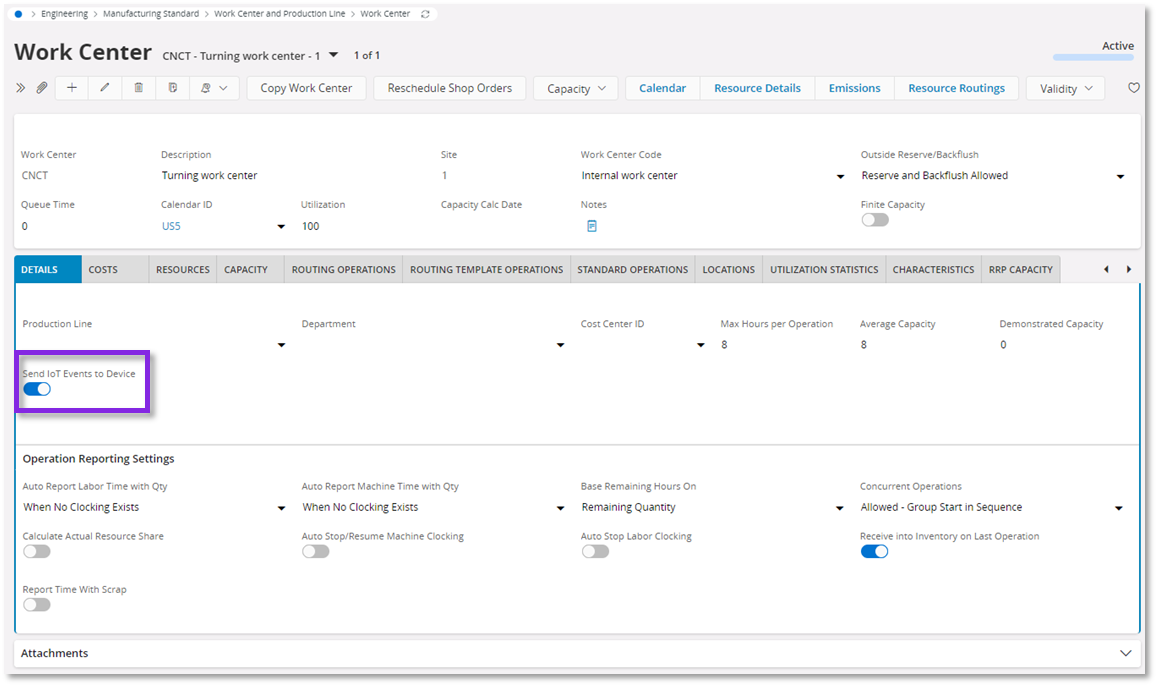

In the Work Center, activate "Send IoT Event to Device." This Work Center should contain the resource to which you want to send messages.image-20220714152842286

Device Map

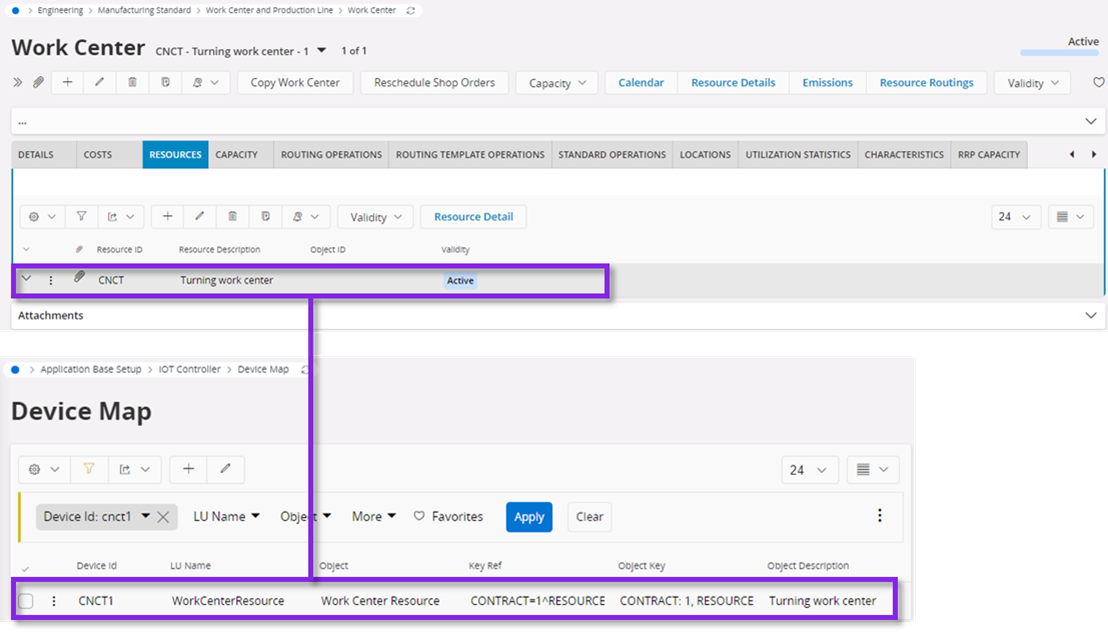

In the Device Map, create a Device ID and connect it to the Work Center Resource ID.

image-20220714152921558

Starting or stopping an operation using a Work Center will generate an IFS Connect Application Message. This message can be enriched with more information and sent outbound.

Enriching the message using Get Operation Info

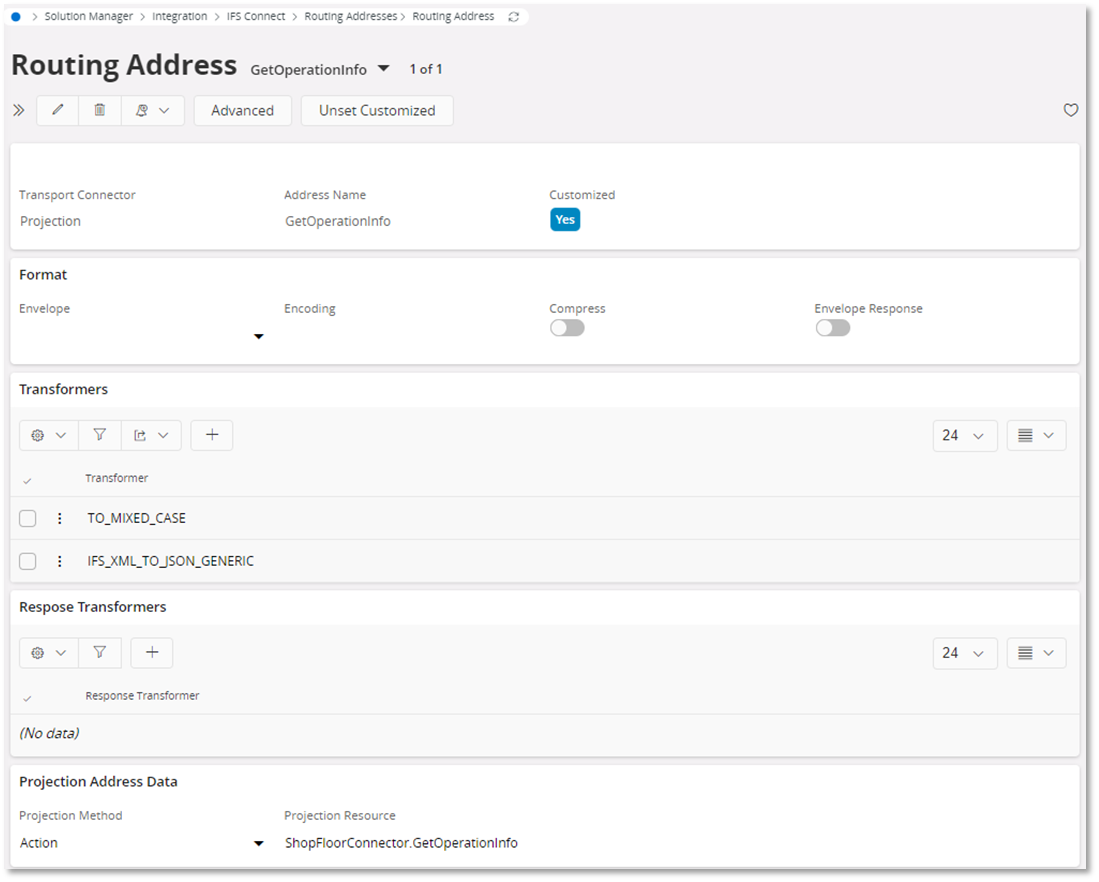

Create a Routing address with the Transport Connector type "Projection." Use the transformers "TO_MIXED_CASE" followed by "IFS_XML_TO_JSON_GENERIC." This converts the XML file containing the Operation ID in the application message to a JSON payload. Set the Projection Method to "Action" and the Projection Resource to "ShopFloorConnector.GetOperationInfo".

image-20220714154624342

Set up the Outbound Address

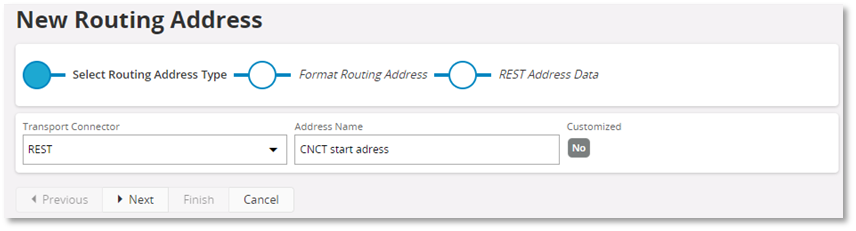

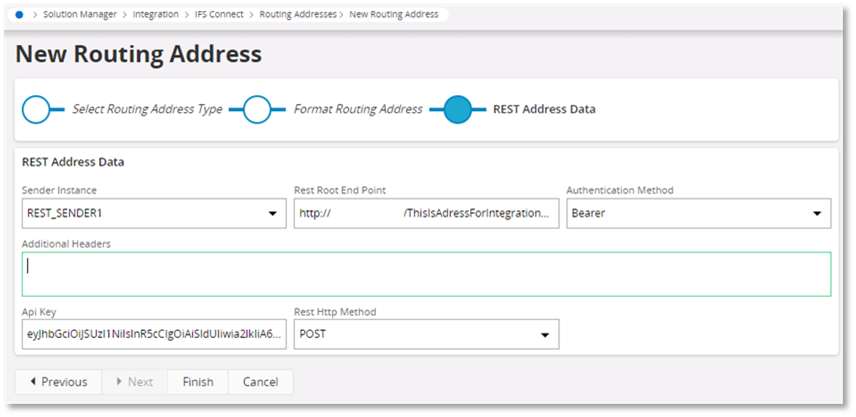

Configure an outbound Routing Address. The example in the images uses a RESTful POST message with an API Key. To configure a custom solution, refer to IFS Connect

image-20220714161546529

image-20220714161541382

Routing Rule - Start or Stop operation

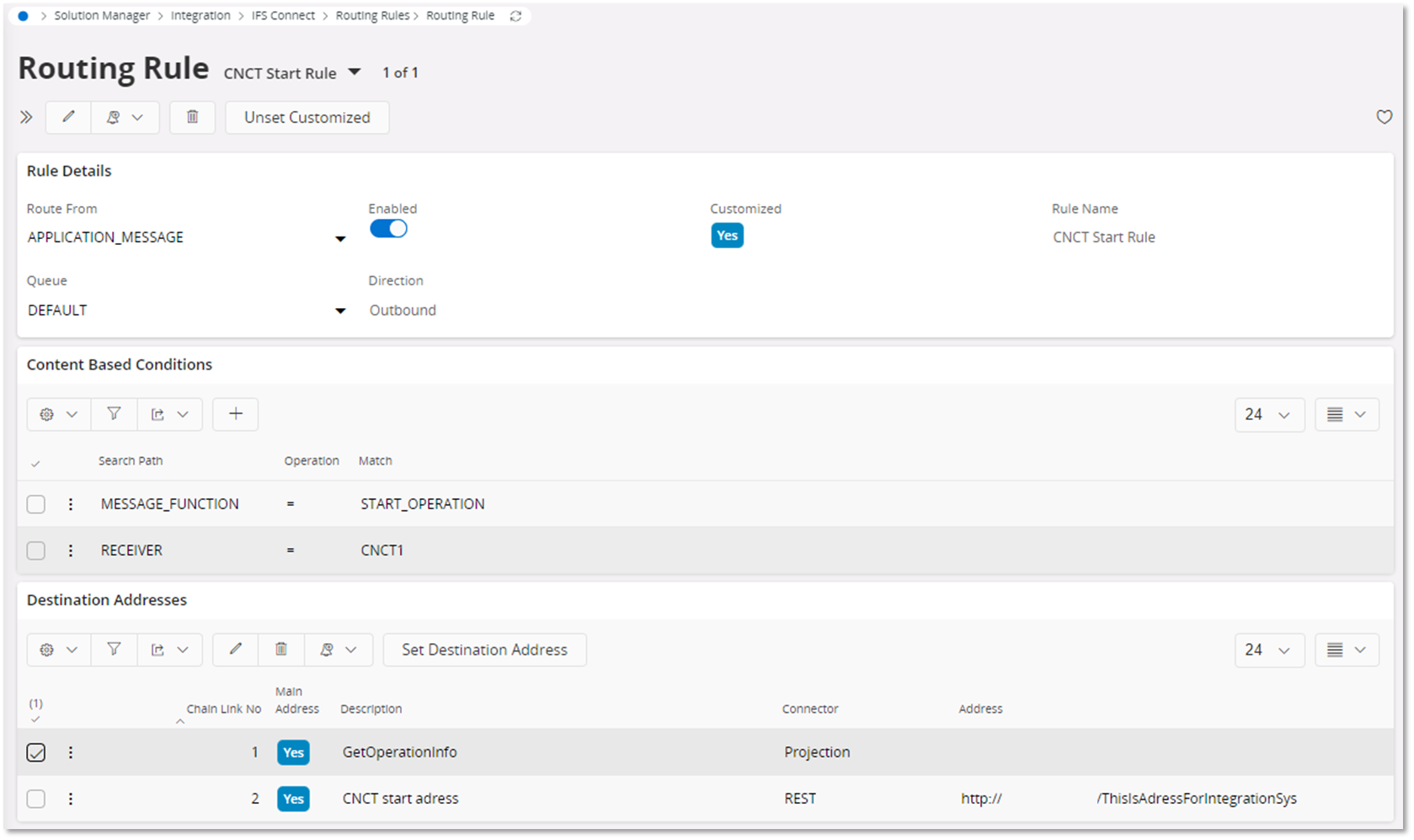

Set up a Routing Rule to trigger an outbound message when a Application Message occurs. Set the MESSAGE_FUNCTION to START_OPERATION. Set the RECEIVER as the Device ID created in the Device Map. Configure the first Destination Address to the internal Projection using GetOperationInfo and the second to the outbound address.

image-20220714162847406

Now, when you start machine time on a shop order operation, it triggers an outbound message to the connected device. A similar solution settingMESSAGE_FUNCTION toSTOP_OPERATION can be setup to trigger a outbound message on operation stop.

To differentiate between setup and production you can use the OperationStatus information in the GetOperationInfo payload. This is a example snippet of a response:

{
...
  "OperationStatus": "SetupStarted",
...
}

With these configurations, you can effectively manage and control machine operations remotely while ensuring safety and efficiency.
