Date Time Picker

The date time picker allows the user to select a date and time from a drop down calendar. This control is generated for fields with datatype date, time, or timestamp.

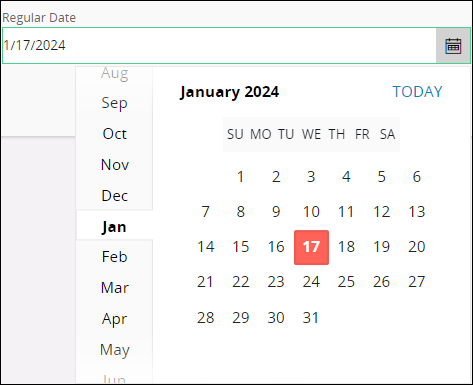

Date Time Picker - Date

Figure 1 - Date Time Picker - Date

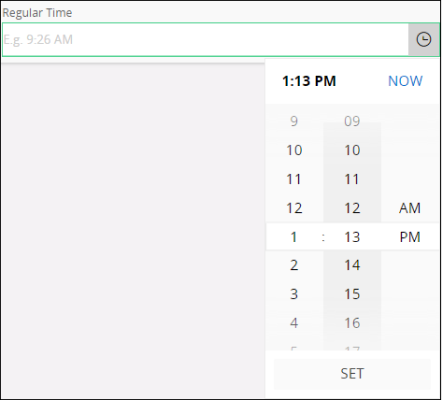

Date Time Picker - Time

Figure 2 - Date Time Picker - Time

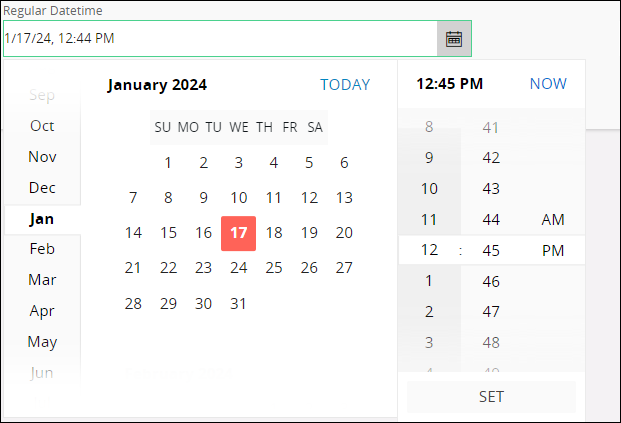

Date Time Picker - Date and Time

Figure 3 - Date Time Picker - Date and Time

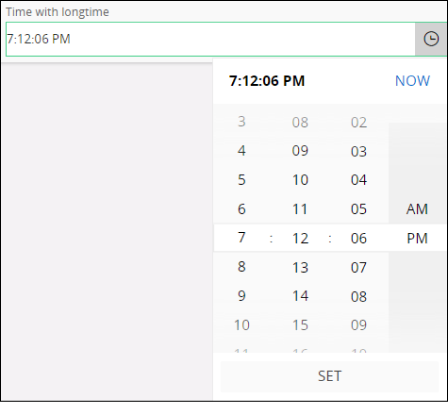

Long Time

Figure 4 - Date Time Picker - Long Time

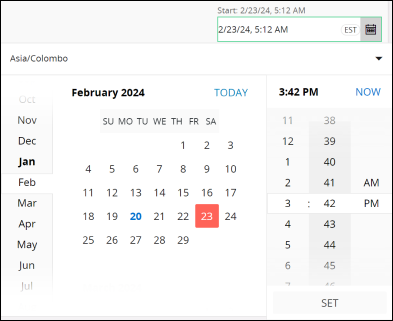

Timezone

Figure 5- Date Time Picker - Timezone Supported

Variations

The date time picker control is a variant of the Field.

When to use

The control will be generated in the client based on the data type.

How to use

Add a Field to the client file, the control will be generated according to the data type. If needed change the relevant properties

field <field_name> {
      //Properties
      format = longtime; //For attributes with data type TIME
   }

Today / Now

If the Entity is timezone aware then the display of Today/Now values in the date/time picker will be done based on the client's timezone as defined in the "Account Settings > Timezone" section.

Timezone

Figure 6- Account Settings - Client Timezone

For entities that are not timezone aware Today/Now values will be selected based on Browser Timezone.

Date/Time Handling for Timezone Aware Entities

Requirement: Entity should be timezone aware.

Feature: If an entity is time zone-aware, a dropdown menu for timezone selection will appear alongside the date/time picker, enabling users to choose a specific time zone for inputting date/time values. Once the user enters a date/time value with a selected time zone from the dropdown and applies it to the date/time field, the value will be converted to their working timezone and displayed accordingly.

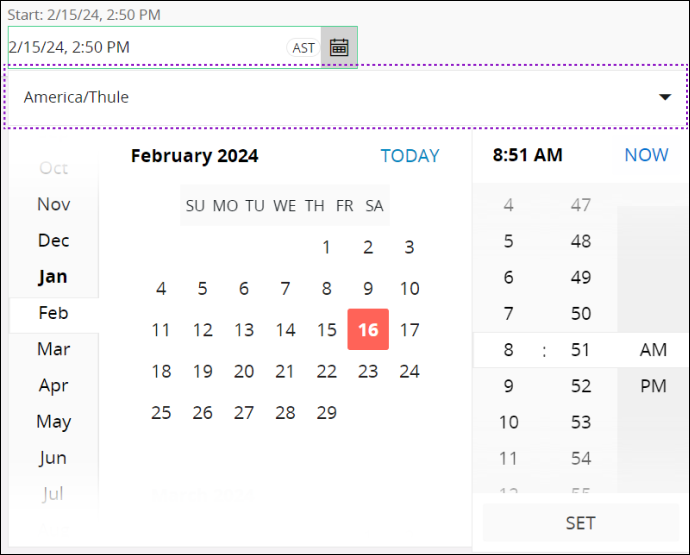

Timezone

Figure 7- Date/Time Picker for Timezone Aware Entities

Note: If the entity is not timezone-aware, the date/time picker will not include the timezone selection dropdown menu.

Limitations

None.

Keywords

None.

Properties

Below is a list of properties that can be used to customize the control.

editable | format | label | size | visible

Example

Consider the following code snippet from an entity:

//Example code - List of attributes in entity
//-------------------------------------------
private      LateStart        TIMESTAMP            A-IU-;
public       AccountingDate   DATE                 A-IU-;
public       CreatedTime      TIME                 A-IU-;

Based on the data type the appropriate control will be generated as outlined in the introduction.
