Configuring Links List Elements¶
"Links List elements" can be utilized to offer users a convenient list of navigation links to particular sections within or outside the system. Following configuration sections are specific for "Links List Elements".

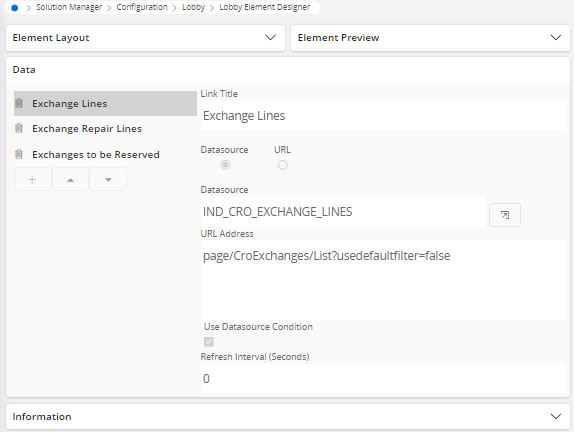

Links List Element Configuration Dashboard Preview¶

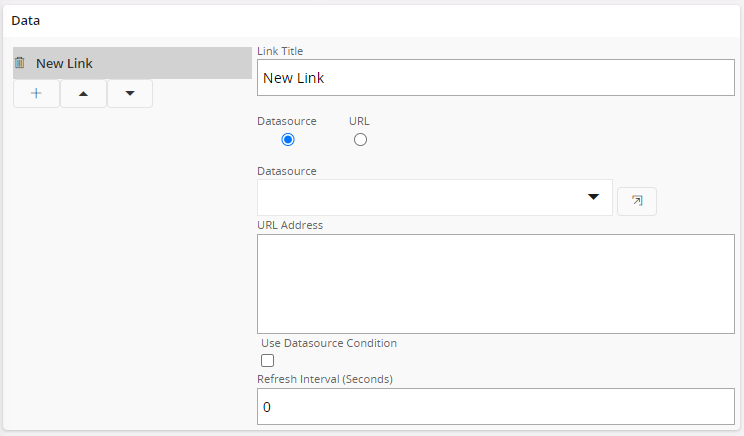

Data¶
You can link each "Link List Element" component with a data source created using "DataSource Designer" or a URL for a trusted third-party location.
Note:
-
Add a new field to the link list by clicking the "+" button (
) -

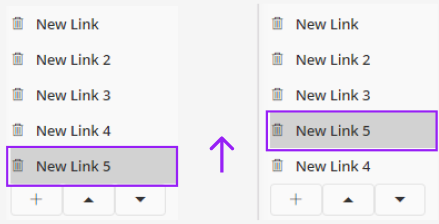

Move the link title "up" on the navigation list by clicking the "Up" button (
)

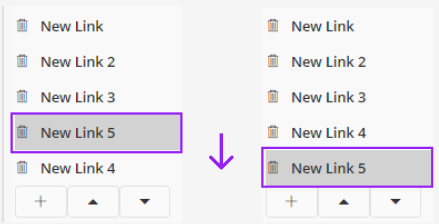

- Move the link title "down" on the navigation list by clicking the "Down" button (
)
- You can navigate to the selected data source by clicking the navigation button (
)
Configuration Properties¶
| Property | Description |
|---|---|
| Link Title | Title to be appeared for the "Link List" component. |
| Datasource | Select this option to link an available data source created from the "Datasource Designer" |
| URL | Select this option to link a trusted 3rd party URL |
| Data Source (Dropdown Menu) | Select an available data source created using "Datasource Designer", from the dropdown menu. (Only available upon selecting the "Datasource" option) |
| URL Address | Any accessible URL that can be used to navigate to a certain page when clicking the link. There are two type of addresses Internal Addresses: Used to navigate within the IFS Cloud application pages. Example: page/CustomerOrders/List External Addresses: Used to navigate outside the IFS Cloud application pages. External links are always opened in a new tab window. Example: https://www.ifs.com |
| Will add column data to the navigation URL | |
| Refresh Intervals (Seconds) | Define data refresh intervals in "seconds". |
